Aurora AU-BH10PIRCSW

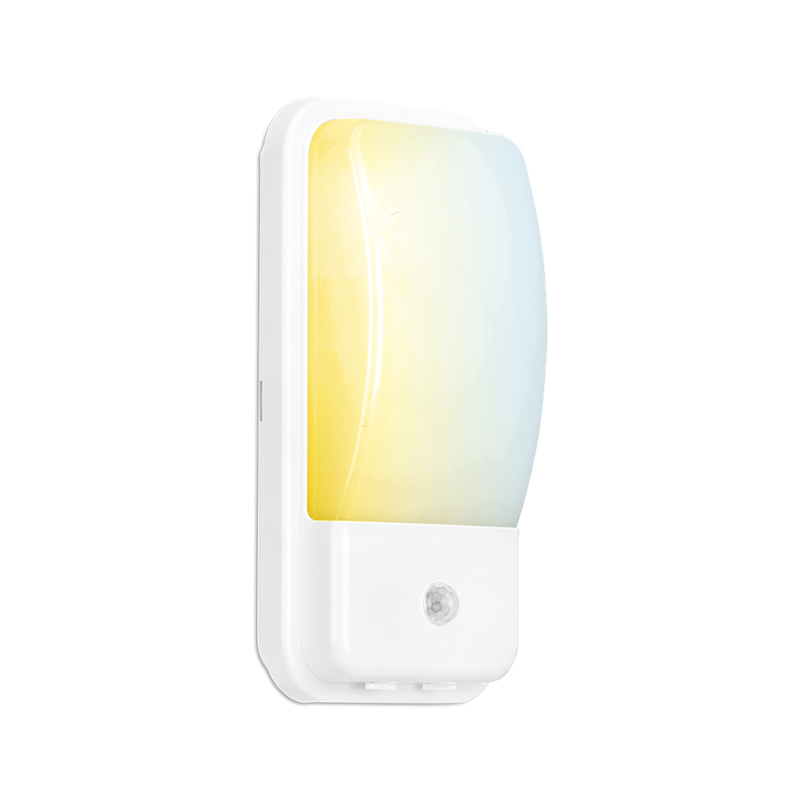

Image is for illustrative purposes only

Aurora AU-BH10PIRCSW Aurora IP65 UtiliteX™CS 10W Upto 1150lm 3000K/4000K/6500K PIR Bulkhead - White

Part: AU-BH10PIRCSW
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

The UtiliteX™CS is a security bulkhead, now improved and upgraded to be colour temperature switchable. With a PIR sensor detection range of up to 5m and a lux adjustment dial, the product offers additional security features, whilst also providing a sleek finish.

  • 3 Year Warranty
  • Pre-wired with 200mm of cable
  • Adjustable hold time 10 seconds to 3 minutes
  • Adjustable light detector from 0 to 350 lux
  • PIR sensor 120° detection beam range up to 5m
  • IK06 rated
  • IP65 rated
  • Polycarbonate body and diffuser
  • Colour switchable between 3000K, 4000K and 6500K

Protection class :II
Width :150mm
Lamp cap/base :Other
Housing colour :White
Voltage type :AC
With movement sensor :Yes
Lamp power :10W
Type of grid :None
Control gear :LED driver constant current
Colour rendering index (CRI/Ra) :80-89
Recess width :150mm
With light sensor :No
Suitable for suspended mounting :No
Length :300mm
Housing material :Other
Light source type :Other
Recess length :300mm
Suitable for light line configuration :No
Suitable for emergency lighting :No
Light outlet :Direct
Light sharing :Symmetric
Impact resistance (IK rating) :IK06
Nominal voltage :240V
Emergency power supply integrated :No
Degree of protection (IP rating) :IP65
Lamp included :Yes
Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 :No
Luminaire may be covered with thermally insulating material :No
Suitable for recessed mounting :No
Control gear included :Yes
Fit for workplace acc. EN 12464-1 :No
Suitable for surface mounting :No
Colour temperature :3000 to 6500K
Maximum system power :10W
Rated luminous flux acc. IEC 62722-2-1 :1150Lm
Colour of light :White
With air slots :No
IFTTT support available :No
Luminaire efficacy :115lm/W
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Flickering value Pst LM :0.1
Stroboscope effect value SVM :0.1
Colour temperature switchable :Discrete positions
Lumen setting adjustable :Discrete positions
Beam angle adjustable :Continuously variable
Suitable for ceiling mounting :No
Power factor :0.5
