Aurora AU-DDLH412CSV

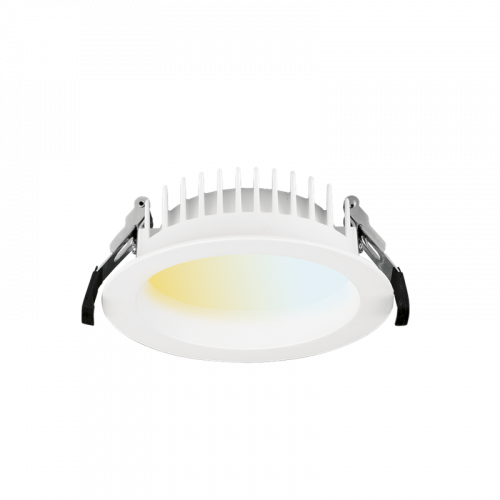

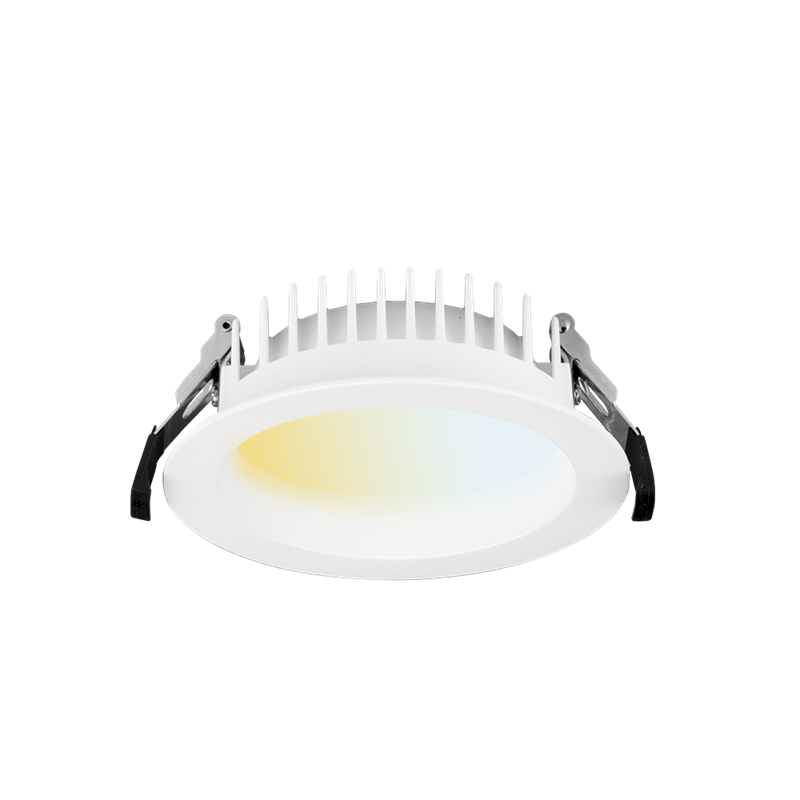

Image is for illustrative purposes only

Aurora AU-DDLH412CSV Aurora LumiCS™ 12W Upto 1380lm 3000K/4000K/6500K Downlight - 1-10V Dimmable

Part: AU-DDLH412CSV
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

With the new LumiCS™ offering multiple colour temperatures within one product, full versatility is avalable with 3000K, 4000K and 6500K options. Ideal for commercial applications, the product comes triac dimmable as standard with the option of DALI or 1-10V dimmable, making the range suitable for a variety of applications.

  • TP(a) rated
  • 5 Year Warranty
  • Supplied with remote triac dimmable constant current driver
  • IP54 rated
  • Colour switchable between 3000K, 4000K and 6500K

Protection class :II
Outer diameter :145mm
Reflector :None
Lamp cap/base :Other
Housing colour :Aluminium
Voltage type :AC
With movement sensor :No
Lamp power :12W
Control gear :LED driver constant current
Colour rendering index (CRI/Ra) :80-89
Wall mounting :No
With light sensor :No
Suitable for suspended mounting :No
Height/depth :53mm
Housing material :Other
Light source type :Other
Light sharing :Symmetric
Impact resistance (IK rating) :IK02
Nominal voltage :240V
Emergency power supply integrated :No
Degree of protection (IP rating) :IP54
Lamp included :No
Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 :No
Luminaire may be covered with thermally insulating material :No
Suitable for recessed mounting :Yes
Control gear included :Yes
Fit for workplace acc. EN 12464-1 :No
Suitable for surface mounting :No
Colour temperature :3000 to 6500K
Maximum system power :12W
Colour of light :White
Adjustability :Not adjustable
Suitable for traverse mounting :No
Suitable for pedestal/floor mounting :No
Suitable for light-track mounting :No
Suitable for clamp-mounting :No
IFTTT support available :No
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Colour temperature switchable :Discrete positions
Lumen setting adjustable :Discrete positions
Beam angle adjustable :No
Recess diameter :145mm
Suitable for ceiling mounting :No
Recess height/depth :53mm
Power factor :0.9
