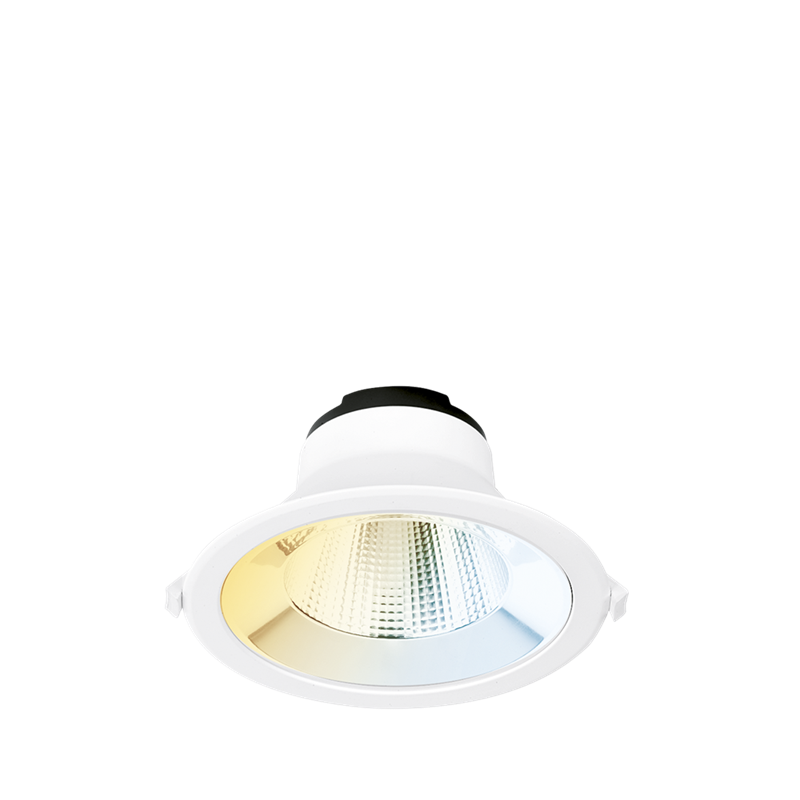

Aurora EN-DDL186CCTDA Aurora ReflectCS™ 18W Upto 1840lm 3000K/4000K/5700K Downlight - DALI Dimmable

Part: EN-DDL186CCTDA
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

The ReflectCS™ range is a colour switchable downlight with a high powered SMD. Featuring a sparkling multifaceted aluminium reflector designed for exceptional light control and providing a 60 degree beam angle for focused downlighting. The downlight can be switchable between 3000K (1770 lumens), 4000K (1840 lumens) and 5700K (1760 lumens). With this versatile downlight, by making your colour selection prior to install it makes it ideal for various applications. Please note: lumen value in SKU table is stated at 4000K.

  • Supplied with remote triac dimmable constant current driver
  • 5 Year Warranty
  • 60° beam angle
  • IP54 rated
  • Delivering up to 102m/W (at 4000K)
  • High powered SMD with a multifaceted aluminium reflector
  • Lumen Value at 5700K - 1770lm
  • Lumen Value at 4000K - 1820lm
  • Lumen Value at 3000K - 1780lm
  • Colour switchable between 3000K, 4000K & 5700K

Protection class :II
Outer diameter :190mm
Reflector :None
Lamp cap/base :Other
Housing colour :Black
Voltage type :AC
With movement sensor :No
Lamp power :18W
Control gear :LED driver constant current
Colour rendering index (CRI/Ra) :80-89
Wall mounting :No
With light sensor :No
Suitable for suspended mounting :No
Height/depth :90mm
Housing material :Aluminium
Light source type :Other
Light outlet :Direct
Nominal voltage :240V
Emergency power supply integrated :No
Degree of protection (IP rating) :IP54
Lamp included :No
Luminaire may be covered with thermally insulating material :No
Suitable for recessed mounting :Yes
Control gear included :Yes
Suitable for surface mounting :No
Colour temperature :3000 to 5700K
Maximum system power :18W
Rated luminous flux acc. IEC 62722-2-1 :1840Lm
Colour of light :White
Adjustability :Not adjustable
Suitable for traverse mounting :No
Suitable for pedestal/floor mounting :No
Suitable for light-track mounting :No
Suitable for clamp-mounting :No
IFTTT support available :No
Luminous flux :1840Lm
Luminaire efficacy :102.22lm/W
Unified Glare Rating (UGR) :19
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) :80%
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) :72.7%
Colour temperature switchable :Discrete positions
Lumen setting adjustable :Discrete positions
Beam angle adjustable :No
Recess diameter :190mm
Suitable for ceiling mounting :No
Recess height/depth :90mm
Power factor :0.9
