CLICK CT102C
Image is for illustrative purposes only

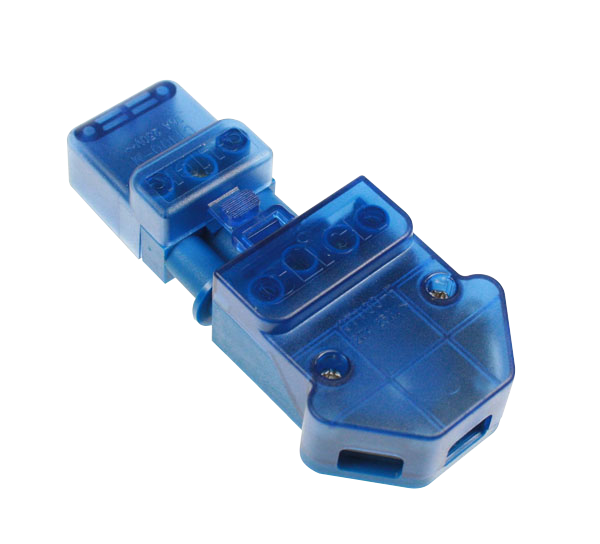

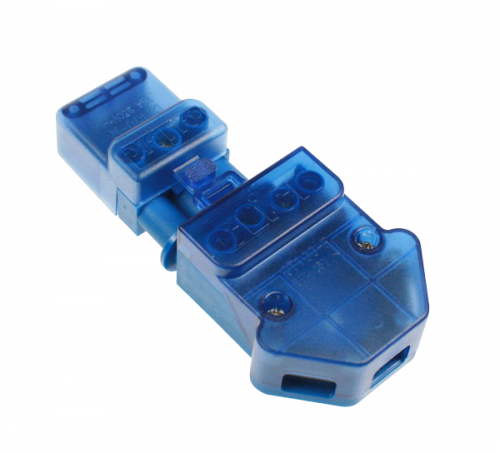

CLICK CT102C FLOW Blue 250V~ 20A 3 Pole Complete (Screw Cable Clamps) Connector

Part: CT102C
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Complete male and female connectors with loop terminal. Screw terminals & screw cordgrip.

  • Complete male and female connectors
  • With loop terminal
  • Screw terminals
  • Screw cordgrip

Width :50mm
Model :Plug
Halogen free :No
Height :23mm
Locking mechanism :Integrated in plug-in connector
Rated current :20A
Rated voltage :250V
With strain relief :No
Number of poles :3
Length :105mm
Housing material :Polyamide (PA)
Surface finish contacts :Other
Mechanical coding :No
Rated surge voltage :4kV
Contact material :CuZn
Degree of protection (IP rating) :IP20
Number of connections per pole :3
Colour coding/contact insert :Blue
Connection cross section (fine-strand) :0.75 to 2.5mm2
Connection cross section (solid-core) :0.75 to 2.5mm2
