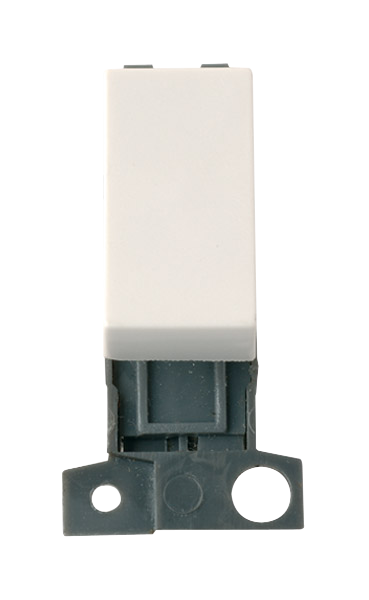

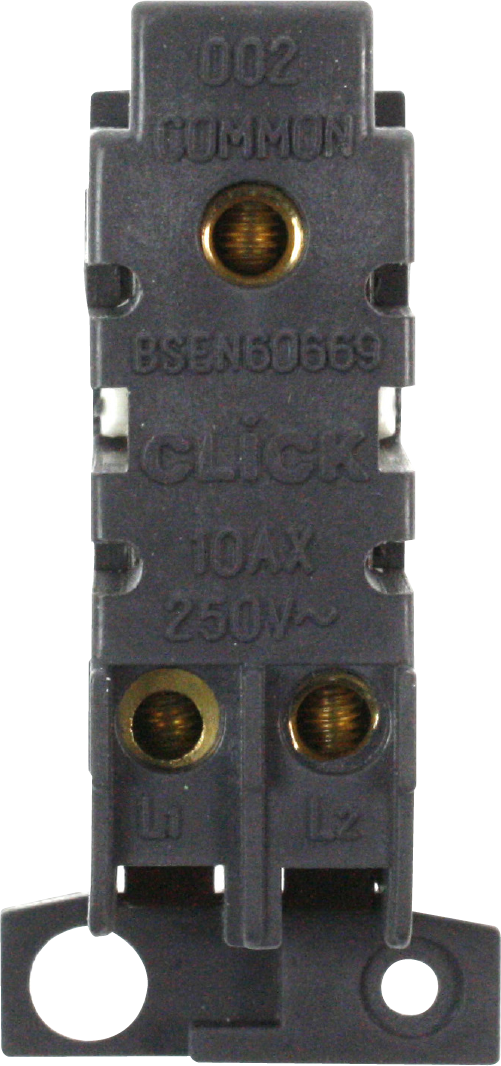

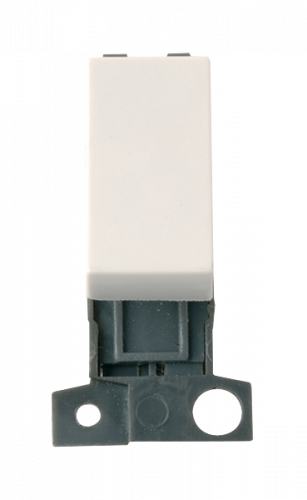

CLICK MD002PW MINIGRID Polar White 10AX 2 Way Switch Module

Part: MD002PW
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

2 way MiniGrid module. Screw fixing module. Polar White finish.

  • 2 way MiniGrid module
  • Screw fixing module
  • Polar White finish

Nominal voltage :250V
Mounting method :Module frame/grid
Method of operation :Rocker
Colour :White
Halogen free :No
With mounting plate :No
Connection type :Screwed terminal
Illumination :No
Surface protection :Untreated
Recess depth :19.1mm
Rated current :10A
Feedback-signal contact :No
Material qualifier :Thermoplastic
Type of lighting :Other
Material :Plastic
Type of fastening :Screw mounting
Wiring system :Two-way switch
Number of rockers/gangs :1
Switching current for fluorescent lamps :10
Push button switch :No
Washing machine switch :No
Surface finish :Matt
Degree of protection (IP rating) :IP20
Width of device :25mm
Height of device :53mm
Depth of device :20mm
Label space/information surface :Optional
Function lighting :Illuminated (on)
Number of module spaces (modular system) :1
IFTTT support available :No
Minimum depth of back box :16mm
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Heating switch :No
Antibacterial treatment :No
