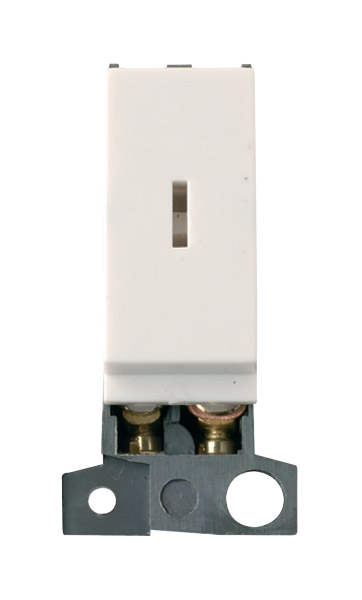

CLICK MD046PW MINIGRID Polar White 13A/10AX Double Pole Keyswitch Module

Part: MD046PW
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Double pole MiniGrid module. Screw fixing module. Polar White finish.

  • Double pole MiniGrid module
  • Screw fixing module
  • Polar White finish

Nominal voltage :250V
Mounting method :Module frame/grid
Method of operation :Key
Colour :White
Halogen free :No
With mounting plate :No
Connection type :Screwed terminal
Illumination :No
Surface protection :Untreated
Recess depth :19.1mm
Rated current :13A
Feedback-signal contact :No
Material qualifier :Thermoplastic
Type of lighting :Other
Material :Plastic
Type of fastening :Screw mounting
Wiring system :2-pole switch
Switching current for fluorescent lamps :10
Push button switch :No
Washing machine switch :No
Surface finish :Matt
Degree of protection (IP rating) :IP20
Width of device :25mm
Height of device :52.5mm
Depth of device :20mm
Label space/information surface :Optional
Function lighting :Illuminated (on)
Number of module spaces (modular system) :1
IFTTT support available :No
Minimum depth of back box :16mm
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Heating switch :No
Antibacterial treatment :No
