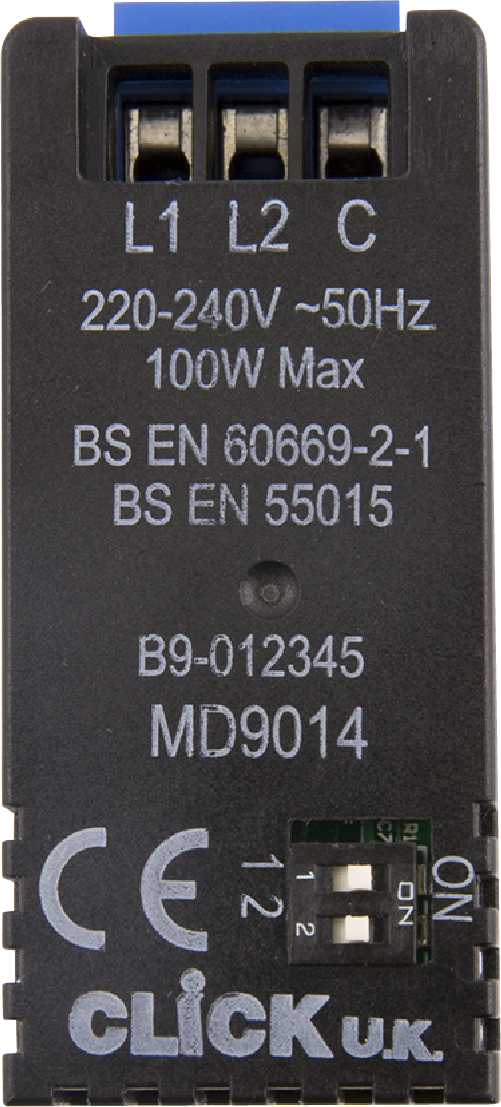

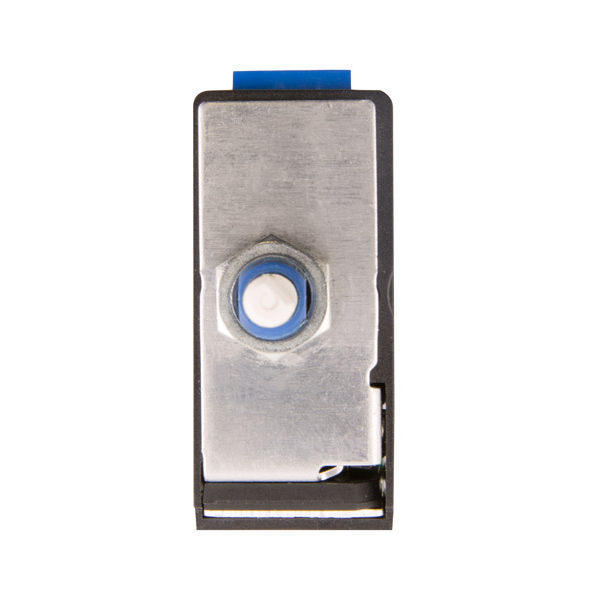

CLICK MD9014 MINIGRID 100W Dual Mode Dimmer Module with Trim

Name: CLICK MD9014 MINIGRID 100W Dual Mode Dimmer Module with Trim
Brand: CLICK
SKU: 1892
Price: 99999 GBP
Availability: InStock

Part: MD9014

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Trailing & leading edge. Rotary dimmer module. Push on and off.

Mounting method :	Module frame/grid
Assembly arrangement :	Basic unit fully enclosed
Method of operation :	Turn/push button
Colour :	Black
Halogen free :	No
Connection type :	Screwed terminal
Surface protection :	Untreated
Frequency :	50 to 60Hz
Material qualifier :	Thermoplastic
Type of load :	Universal and LED Retrofit
Material :	Plastic
Type of fastening :	Other
Light value memory :	No
Auxiliary input :	No
Serial dimmer :	No
Activated by movement sensor :	No
Activated by RF remote control :	No
Activated by IR remote control :	No
Activated by presence detector :	No
Activated by button :	No
Activated by time switch/timer :	No
Control voltage :	220 to 240V
Transparent :	No
Surface finish :	Matt
Degree of protection (IP rating) :	IP20
Core cross section :	1 to 1.5mm²
Width of device :	25mm
Height of device :	57.5mm
Depth of device :	24.2mm
Number of module spaces (modular system) :	1
IFTTT support available :	No
Dimming trailing edge :	No
Dimming leading edge :	No
Minimum depth of back box :	25mm
App control :	No
Nominal power resistive load :	5 to 100W
Nominal power inductive load :	5 to 100VA
Nominal power capacitive load :	5 to 100VA
Compatible with Apple HomeKit :	No
Compatible with Google Assistant :	No
Compatible with Amazon Alexa :	No
Max. switching power LED :	100W
