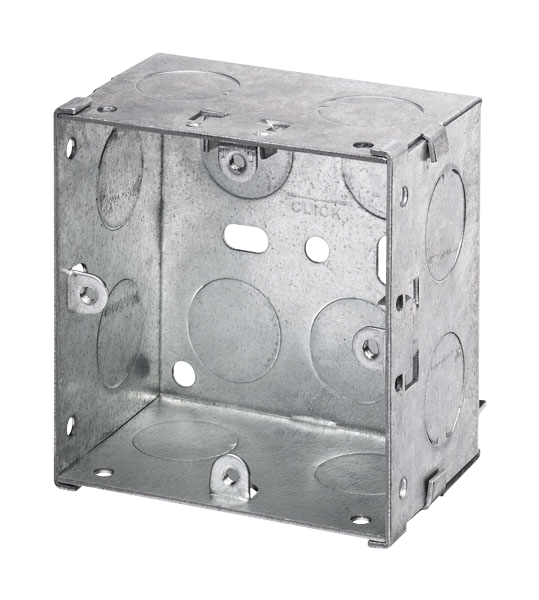

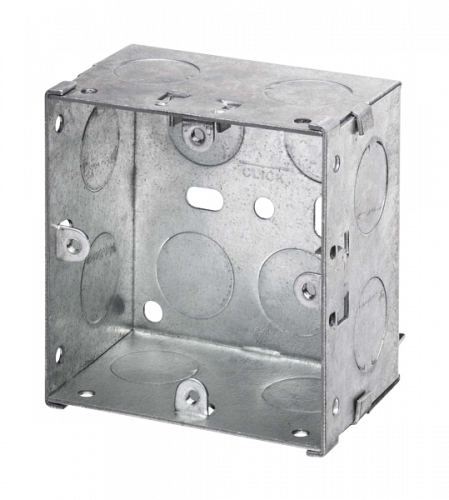

CLICK WA097 ESSENTIALS 1 Gang 47mm Deep Galvanised Steel K.O. Box

Part: WA097

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

10 x 20mmŲ, 1 x 25mmŲ knockouts. Earth terminal provided.

Mounting method :	Flush mounted
Colour :	Other
Width :	70mm
Model :	Single
Halogen free :	No
Shape :	Rectangular
Surface protection :	Pre-galvanised
Equipped with :	None
Construction type :	Flush mounted box
Internal depth :	47mm
Couplable :	No
Sealable :	No
Circuit integrity :	None
Number of entry points :	11
Device mounting method :	Screwing
Cover attachment :	Screwed
Luminaire hook mounting :	No
With screening :	No
With screws :	No
Wind proof :	No
Depth :	47mm
Suitable for cable outer diameter :	1 to 22mm
Degree of protection (IP rating) :	IP00
For tube diameter :	20/25 mm
Entry point on rear :	No
Pipe locking :	No
Special application :	None
Number of poles of the clamp :	0
Nozzle :	None
Provided with revolving ring :	No
Housing feed-through by seal membrane :	No
Housing feed-through by nozzle :	No
Housing feed-through by step membrane :	No
Pipe locking optional :	No
Number of included spouts :	0
Cover model :	None
Housing feed-through by break-out opening :	No
Transparent cover :	No
Suitable for wall/board thickness :	5 to 47mm
