CLICK WA4135

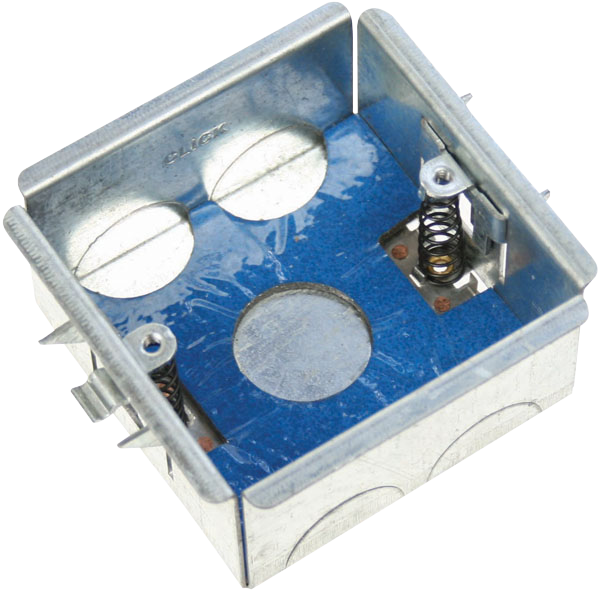

Image is for illustrative purposes only

CLICK WA4135 ESSENTIALS 1 Gang 35mm Deep FlameGuardŽ Dry Lining Box

Part: WA4135
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Fire rated to 90 minutes. Acoustic compliant, complies with Robust Details Part E. Plasterboard thickness: 18mm.

  • Fire rated to 90 minutes
  • Acoustic compliant, complies with Robust Details Part E
  • Plasterboard thickness: 18mm

Mounting method :Hollow wall
Colour :Other
Width :82mm
Model :Single
Halogen free :No
Shape :Rectangular
Surface protection :Pre-galvanised
Equipped with :Clamp
Construction type :Flush mounted box
Internal depth :35mm
Couplable :No
Sealable :No
Circuit integrity :None
Number of entry points :5
Device mounting method :Screwing
Cover attachment :Screwed
Luminaire hook mounting :No
With screening :No
With screws :No
Wind proof :No
Depth :35mm
Suitable for cable outer diameter :1 to 15mm
Degree of protection (IP rating) :IP00
For tube diameter :25 mm
Entry point on rear :No
Pipe locking :No
Special application :Fire protection
Clamp position fixed :No
Number of poles of the clamp :0
Nozzle :None
Provided with revolving ring :No
Housing feed-through by seal membrane :No
Housing feed-through by nozzle :No
Housing feed-through by step membrane :No
Pipe locking optional :No
Number of included spouts :0
Cover model :None
Housing feed-through by break-out opening :No
Transparent cover :No
Suitable for wall/board thickness :5 to 18mm
