Deta 4603 extractor fan
Image is for illustrative purposes only

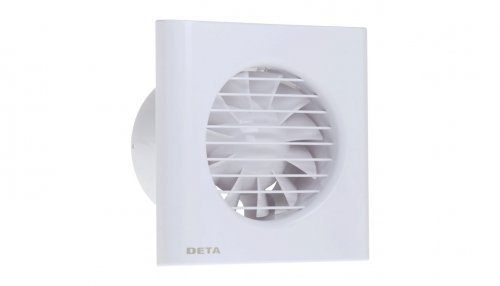

Deta 4603 Deta 4" extractor fan with timer & humidistat

Part: 4603
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Deta's Ventilation range includes an extensive range of 4" and 6" extractor fans and accessories. These products are designed to meet the latest requirements of the Building Regulations for new and existing dwellings. This includes meeting the requirements covering minimum airflow, noise levels and controls.

  • Sleek, slim profile design offering a quiet and efficient performance
  • Extraction rate 25 litres/second or 90m3 /hour
  • Noise level of 29dB @3m
  • Specific fan power of 0.32 W/l/s
  • Overrun time delay and humidistat user settable between 2 and 30 mins and 60-90% RH respectively.
  • Ideal for through wall applications or with ducting lengths under 2m
  • Supplied with a one shot thermal fuse
  • BS EN 60335-2-80, Part F & L1 Building Regulations Approved Document
  • 3-year guarantee

Colour :White
Width :150mm
Height :150mm
Power consumption :8W
Connection voltage :240V
Degree of protection (IP rating) :IP24
Humidity sensor :Adjustable
Air volume, free flow :90m3/hr
Timer :Adjustable
