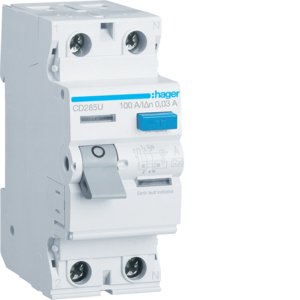

Hager CD285U 100A 30mA 2 Pole RCCB Type A

Part: CD285U

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

RCCB 2P 100A 30mA A.

To open a circuit automatically in the event an earth fault between line and earth, and/or neutral and earth
Conforms to BS EN 61008, IEC1008
Terminal capacities: 16-63A Rigid 25mm², Flexible 16mm² / 80 & 100A Rigid 50mm², Flexible 35mm²
Positive contact indication is provided by the rectangular flag indicator
Red = Closed
Green = Open
Indication of trip is provided by the flag indicator
Yellow = Tripped
All RCCBs have trip free mechanisms and can be padlocked either on or off with the use of a MZN175.

Mounting method :	DIN rail
Recess depth :	70mm
Rated current :	100A
Rated voltage :	230V
Rated insulation voltage Ui :	500V
Number of poles :	2
Rated fault current :	30mA
Leakage current type :	A
Selective protection :	No
Short-circuit breaking capacity (Icw) :	6kA
Surge current capacity :	3kA
Pollution degree :	2
Width in number of modular spacings :	2
Short-time delayed tripping :	No
Frequency :	50 Hz
Degree of protection (IP rating) :	IP20
Connectable conductor cross section solid-core :	1 to 50mm²
Connectable conductor cross section multi-wired :	1 to 35mm²
With interlocking device :	Yes
Ambient temperature during operating :	-25 to 40°C
Additional equipment possible :	Yes
Rated impulse-withstand voltage (Uimp) :	4kV
