Hager CDB463F
Image is for illustrative purposes only

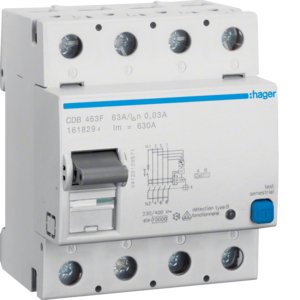

Hager CDB463F RCCB 4P 63A 30mA B

Part: CDB463F
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

RCCB 4P 63A 30mA B Class.

Mounting method :DIN rail
Recess depth :70mm
Rated current :63A
Rated voltage :400V
Rated insulation voltage Ui :500V
Number of poles :4
Rated fault current :30mA
Leakage current type :B
Selective protection :No
Short-circuit breaking capacity (Icw) :10kA
Surge current capacity :3kA
Pollution degree :2
Width in number of modular spacings :4
Short-time delayed tripping :No
Frequency :50 Hz
Degree of protection (IP rating) :IP20
Connectable conductor cross section solid-core :1.5 to 50mm2
Connectable conductor cross section multi-wired :1.5 to 16mm2
Ambient temperature during operating :-25 to 40°C
Additional equipment possible :Yes
Rated impulse-withstand voltage (Uimp) :4kV
