Hager CE463J
Image is for illustrative purposes only

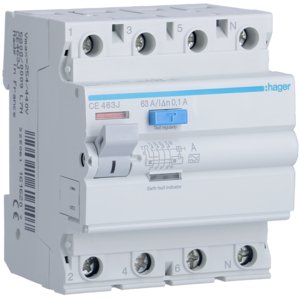

Hager CE463J 63A 100mA 4 Pole RCCB Type A

Part: CE463J
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

RCCB 4P 63A 100mA A Class.

  • To open a circuit automatically in the event an earth fault between line and earth, and/or neutral and earth
  • Conforms to BS EN 61008, IEC1008
  • Terminal capacities: 16-63A Rigid 25mm˛, Flexible 16mm˛ / 80 & 100A Rigid 50mm˛, Flexible 35mm˛
  • Positive contact indication is provided by the rectangular flag indicator
  • Red = Closed
  • Green = Open
  • Indication of trip is provided by the flag indicator
  • Yellow = Tripped
  • All RCCBs have trip free mechanisms and can be padlocked either on or off with the use of a MZN175.

Mounting method :DIN rail
Recess depth :70mm
Rated current :63A
Rated voltage :400V
Rated insulation voltage Ui :500V
Number of poles :4
Rated fault current :100mA
Leakage current type :A
Selective protection :No
Short-circuit breaking capacity (Icw) :6kA
Surge current capacity :0.25kA
Pollution degree :2
Width in number of modular spacings :4
Short-time delayed tripping :No
Frequency :50 Hz
Degree of protection (IP rating) :IP20
Connectable conductor cross section solid-core :1 to 25mm2
Connectable conductor cross section multi-wired :1 to 16mm2
Ambient temperature during operating :-25 to 40°C
Additional equipment possible :Yes
Rated impulse-withstand voltage (Uimp) :4kV
