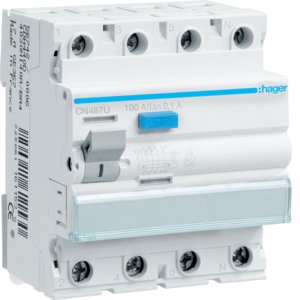

Hager CN487U RCCB 4P 100A 100mA A S

Name: Hager CN487U RCCB 4P 100A 100mA A S
Brand: Hager
SKU: 10695
Price: 99999 GBP
Availability: InStock

Part: CN487U

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

RCCB 4P 100A 100mA A S.

Mounting method :	DIN rail
Recess depth :	70mm
Rated current :	100A
Rated voltage :	400V
Rated insulation voltage Ui :	500V
Number of poles :	4
Rated fault current :	100mA
Leakage current type :	A
Selective protection :	Yes
Short-circuit breaking capacity (Icw) :	6kA
Surge current capacity :	5kA
Pollution degree :	2
Width in number of modular spacings :	4
Short-time delayed tripping :	Yes
Frequency :	50 Hz
Degree of protection (IP rating) :	IP20
Connectable conductor cross section solid-core :	1 to 50mm²
Connectable conductor cross section multi-wired :	1 to 35mm²
With interlocking device :	Yes
Ambient temperature during operating :	-25 to 40°C
Additional equipment possible :	Yes
Rated impulse-withstand voltage (Uimp) :	4kV
