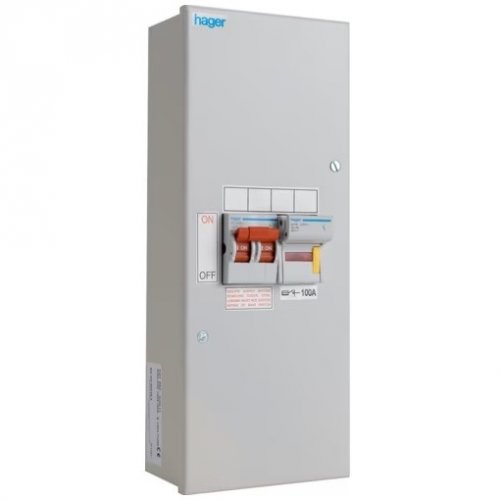

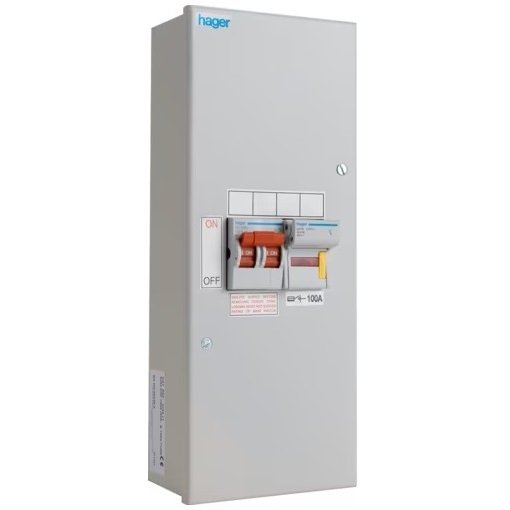

Hager IU44-11 100A Switched Fuse
Image is for illustrative purposes only

Hager IU44-11 100A Switched Fuse

Part: IU44-11
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

100A Switched Fuse.

  • 4 Module Metal Unit 1 x 100A Isolator
  • AC22A.
  • Connection Capacity: 50mm² Rigid Conductor,
  • 35mm² Flexible Conductor
  • 1 x 100A Fuse

Rated permanent current Iu :100A
Number of poles :2
Degree of protection (IP), front side :Other
Type of electrical connection of main circuit :Screw connection
Version as main switch :Yes
Max. rated operation voltage Ue AC :240V
Equipped with connectors :Yes
Rated permanent current Iu :100A
Number of poles :2
Degree of protection (IP), front side :IP3X
Type of electrical connection of main circuit :Screw connection
Version as main switch :Yes
Max. rated operation voltage Ue AC :240V
Equipped with connectors :Yes

Make an enquiry

...
