Hager JF608B
Image is for illustrative purposes only

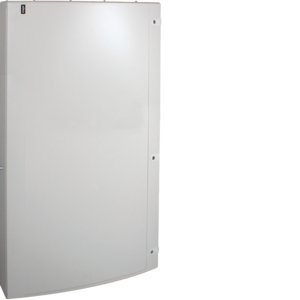

Hager JF608B 630A 8 Way Panelboard 125A Outgoers Plain Door

Part: JF608B
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

630A 8 Way 125A Outgoers Plain.

  • Plain door
  • Comprises of IP3XD enclosure, pan assembly, neutral bar and earth bar
  • Conforms to BS EN 61439-2. I nA = 630/800A, Inc = 125A/250A, Icc = 50kA
  • Supplied without incoming kit
  • Removable gland plates are provided top and bottom for ease of installation

Mounting method :Surface mounted
Colour :Other
Width :900mm
Depth :220mm
Type of covering :Cover
EMC-version :No
Housing material :Steel
Type of closure :Cylinder
Degree of protection (IP rating) :IP30
Transparent cover/door :No
With lock :Yes
Mounting method :Surface mounted
Colour :Other
Width :900mm
Depth :220mm
Type of covering :Cover
EMC-version :No
Housing material :Steel
Type of closure :Cylinder
Degree of protection (IP rating) :IP30
Transparent cover/door :Yes
With lock :Yes
