Hager JK104BGSPD

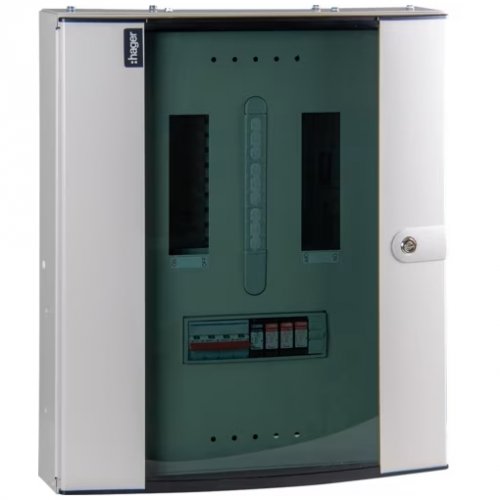

Image is for illustrative purposes only

Hager JK104BGSPD 125A 4 Way Invicta 3 Type B TPN Distribution Board, Glazed Door with Surge Protection

Part: JK104BGSPD
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

125A 4 Way TPN Board with 4 pole SD & Type II SPD Glazed.

  • IP3XD rated available with plain, glazed & Amendment 3 door options
  • Conforms to BS EN 61439-3, InA = 125A, Inc = 63A, Icc = 25kA
  • Incoming cable sizes: 125A & 100A 50mm², 63A 16mm²
  • factory fitted SPD Type 2 & 4 Pole SD incomer.

Mounting method :Surface mounted
Width :465mm
Height :500mm
Depth :132.5mm
Lockable :Yes
With socket outlet :No
Extension possible :Yes
With transparent cover :Yes
Degree of protection (IP rating) :IP30
Number of poles main switch :4
With bell transformer :No
Main switch rated current :125A
