Hager JK112BA3

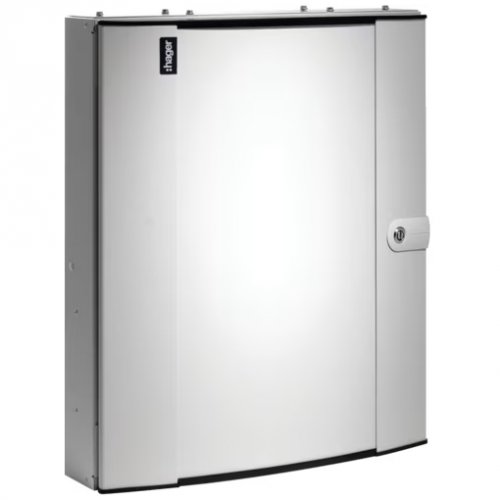

Image is for illustrative purposes only

Hager JK112BA3 125A 12 Way Invicta 3 Type B TPN Distribution Board, Plain Door Amendment 3

Part: JK112BA3
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

125A 12 Way TPN Board Plain Door Amendment 3.

  • IP3XD rated available with plain, glazed & Amendment 3 door options
  • Conforms to BS EN 61439-3, InA = 125A, Inc = 63A, Icc = 25kA
  • Supplied without incoming & outgoing devices. A Hager incomer kit must be used
  • Incoming cable sizes: 125A & 100A 50mm², 63A 16mm²

Mounting method :Surface mounted
Colour :Other
Width :465mm
Height :850mm
Depth :165.5mm
RAL number :7035
Type of covering :Cover
EMC-version :No
Housing material :Steel
Type of closure :Other
Degree of protection (IP rating) :IP30
Transparent cover/door :No
With lock :Yes
Colour :Other
Width :465mm
Model :Lock door
Height :850mm
EMC-version :No
Version as glazed door :No
Version as door for disconnecting switch interlocking :No

Make an enquiry

...
