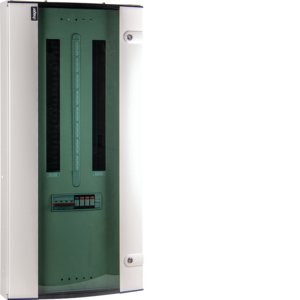

Hager JK124BGSPD 125A 24 Way Invicta 3 Type B TPN Distribution Board, Glazed Door with Surge Protection

Name: Hager JK124BGSPD 125A 24 Way Invicta 3 Type B TPN Distribution Board, Glazed Door with Surge Protection
Brand: Hager
SKU: 1615
Price: 99999 GBP
Availability: InStock

Part: JK124BGSPD

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

125A 24 Way TPN Board with 4 pole SD & Type II SPD Glazed.

IP3XD rated available with plain, glazed & Amendment 3 door options
Conforms to BS EN 61439-3, InA = 125A, Inc = 63A, Icc = 25kA
Incoming cable sizes: 125A & 100A 50mm², 63A 16mm²
factory fitted SPD Type 2 & 4 Pole SD incomer.

Mounting method :	Surface mounted
Width :	465mm
Height :	1250mm
Depth :	132.5mm
Lockable :	Yes
With socket outlet :	No
Extension possible :	Yes
With transparent cover :	Yes
Degree of protection (IP rating) :	IP30
Number of poles main switch :	4
With bell transformer :	No
Main switch rated current :	125A
