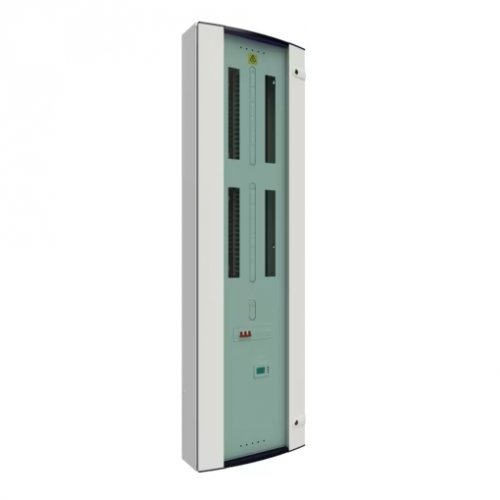

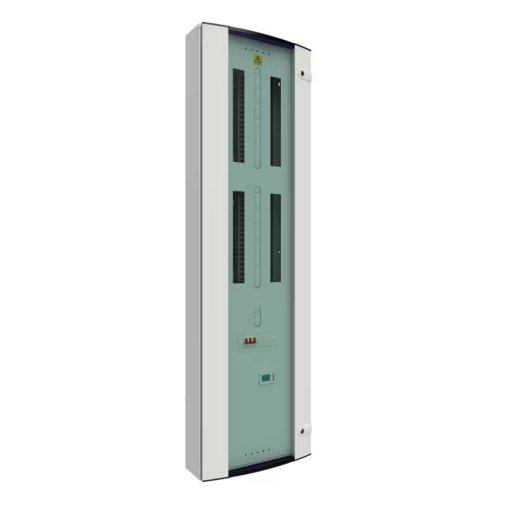

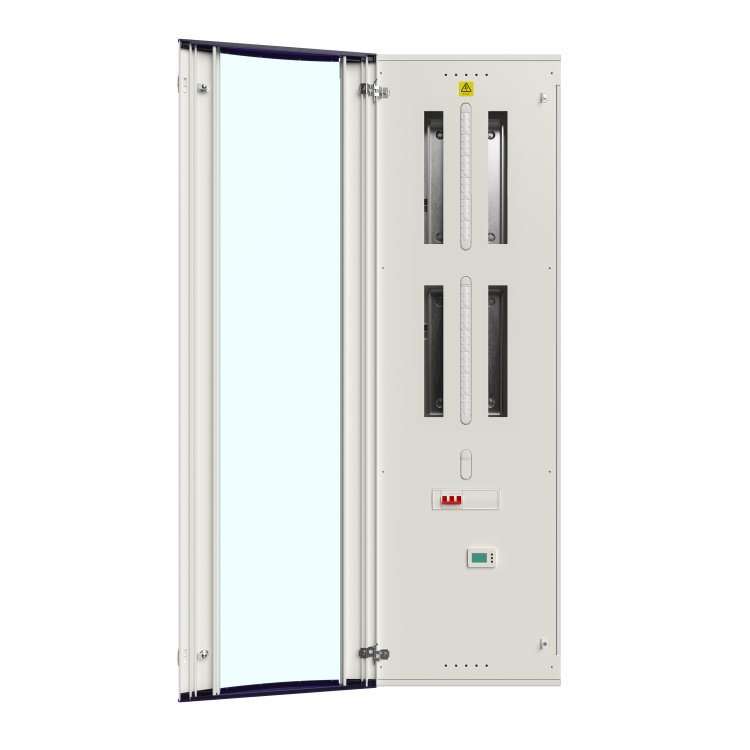

Hager JKD11212TM 125A Dual Metered TPN Power & Lighting Board. Lower Pan 12 Way/Upper Pan 12 Way

Part: JKD11212TM
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Hager Invicta 3 125A Dual Metered TPN Power & Lighting Board. Lower Pan 12 Way/Upper Pan 12 Way.

  • Distribution boards conforming to BS EN 61439-3
  • Split metered sections to seperately monitor small power and lighting circuits
  • Complete with a factory fitted 125A TP switch disconnector
  • MID approved energy meter and CT's
  • Suitable for tenant billing if required
  • Advanced features provide a choice of two modes of operation in this board
  • The orientation of load type labelling can be reversed if required

Mounting method :Surface mounted
Width :465mm
Height :1400mm
Depth :165.5mm
Lockable :No
With socket outlet :No
Number of phases :3
Protection :Miniature circuit breaker/RCBO
Extension possible :Yes
With transparent cover :Yes
Over voltage-/surge protection :No
Housing material :Steel
Degree of protection (IP rating) :IP30
Number of earth leakage switches 300 mA :0
Number of earth leakage switches 30 mA :0
Number of poles main switch :3
Main switch rated current :125A
Protection main switch :Yes
Number of outgoing ways :72
With metering :Yes
