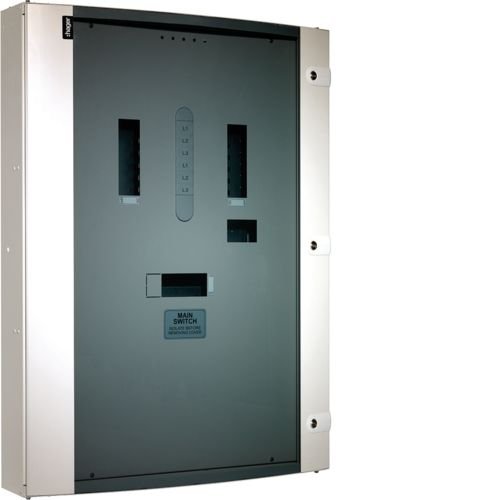

Hager JN206BG 250A Invicta 3 Panelboard: 6 Way 125A Outgoers Glazed Door

Part: JN206BG
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

250A 6 Way 125A Outgoers Glazed.

  • Comprises of IP3XD rated enclosure, pan assembly, twin neutral and earth bars.
  • Conforms to BS EN 61439-2. I nA = 250A, Inc = 125A, Icc = 25kA.
  • Supplied without incoming kit, JN 250A incomer kit must be used.
  • Form 3B type 2 using outgoing terminal shield (form 3A without terminal shield).
  • Removable side gland plates are standard. Removable gland plates are provided top and bottom for ease of installation.

Mounting method :Surface mounted
Colour :Other
Width :710mm
Height :1100mm
Depth :220mm
RAL number :9001
Type of covering :Cover
EMC-version :No
Housing material :Steel
Type of closure :Other
Degree of protection (IP rating) :IP30
Transparent cover/door :Yes
With lock :No
