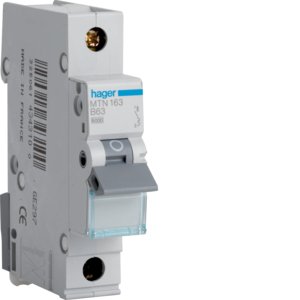

Hager MTN163 63A 6kA B Curve Single Pole 1 Module MCB

Part: MTN163
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

MCB 1P 6kA B-63A 1M.

  • Protection Devices
  • Protection and control of circuits against overloads and short circuits for use in domestic installations.
  • Complies with BS EN 60898.
  • Voltage rating: 230V
  • Current rating: 6 - 63A
  • Connection capacity: Rigid = 25mm2 , Flexible = 16mm²
  • - Calibration temperature: 30°C
  • Width (1 Mod =17.5mm)

Voltage type :AC
Recess depth :70mm
Rated current :63A
Rated voltage :400V
Frequency :50 to 60Hz
Tripping characteristic (type/curve) :B
Rated insulation voltage Ui :500V
Current limiting class :3
Pollution degree :2
Width in number of modular spacings :1
Degree of protection (IP rating) :IP20
Concurrently switching N-neutral :No
Connectable conductor cross section solid-core :1 to 35mm2
Connectable conductor cross section multi-wired :1 to 25mm2
Ambient temperature during operating :-25 to 70°C
Number of poles (total) :1
Rated short-circuit breaking capacity Icn EN 60898 at 230 V :6kA
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V :10kA
Rated impulse-withstand voltage (Uimp) :4kV
