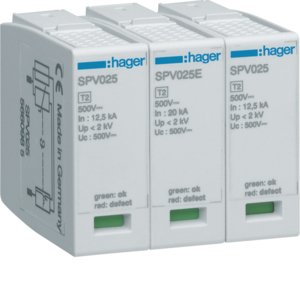

Hager SPV025
Image is for illustrative purposes only

Hager SPV025 Replacement Cartridge for SPV325

Part: SPV025
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Cartridge +/- for SPV325.

With remote signalling contact :No
Voltage protection level :4kV
Max. voltage (Uc) :1000V
Nominal discharge surge current 8/20 µs (In) :12.5kA
Type / Test class 2 :Yes
Signalling at the device :Optic
Degree of protection (IP rating) :IP20
Max. PV-voltage :0V
Integrated backup fuse :No
Max. discharge surge current (8/20) :25kA
With remote signalling contact :No
Voltage protection level :4kV
Max. voltage (Uc) :1000V
Nominal discharge surge current 8/20 µs (In) :12.5kA
Type / Test class 2 :Yes
Signalling at the device :Optic
Degree of protection (IP rating) :IP20
Max. PV-voltage :0V
Integrated backup fuse :No
Max. discharge surge current (8/20) :25kA

Make an enquiry

...
