Hager VML114RK

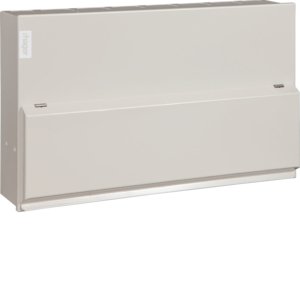

Image is for illustrative purposes only

Hager VML114RK 100A 14 Way Design 10 Switch Disconnector Incomer Consumer Unit Round Knockouts

Part: VML114RK
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Design 10 Consumer Unit 14 Way 100A Sw Disconnector Incomer Round KO.

  • Surface Mounted Consumer Units With Round Knockouts
  • Switch Disconnector Incomer
  • All Design 10 consumer units contain top, bottom & rear knockouts and a meter tail cable entry plate (VM04CE) as standard
  • Supplied with a full metal DIN rail, 100A switch disconnector incomer and a full complement of earth and neutral terminals along with marking labels, busbar and instructions.
  • References ending in SPD come with a Type 2 SPD fitted.
  • - Recommended for use with TT systems when utilising RCBO on all outgoing circuits
  • We also recommend the use of cable clamp (VA10MT) for use on TT systems, available as an accessory.
  • - Conforms to BS EN 61439-3 Including Annex ZB (16kA rating).

Mounting method :Surface mounted
Width :368.4mm
Height :98.2mm
Depth :100mm
Lockable :No
With socket outlet :No
Number of phases :1
Protection :Other
Extension possible :Yes
With transparent cover :No
Over voltage-/surge protection :No
Housing material :Steel
Degree of protection (IP rating) :IP2XC
Number of earth leakage switches 300 mA :0
Number of earth leakage switches 30 mA :0
Number of poles main switch :2
With bell transformer :No
Main switch rated current :100A
