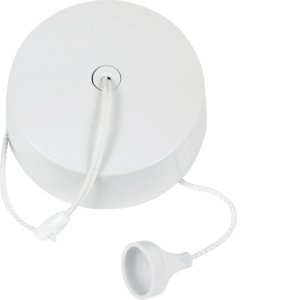

Image is for illustrative purposes only

Hager WMCS11 Sollysta White 6A Ceiling Switch: 1 Way

Part: WMCS11

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

6A Ceiling Switch 1 Way.

Complies with BS EN 60669-1
‘X‘ rated - no need to de-rate for fluorescent loads
Earth terminal in base
Switch will operate at up to an angle of 45º
Pull cords 1.5m long
Capacity of each terminal: 2 x 1.5mm² conductors
High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Nominal voltage :	240V
Mounting method :	Flush mounted
Assembly :	Basic unit with full cover plate
Method of operation :	Pull cord
Colour :	White
Halogen free :	Yes
With mounting plate :	Yes
Connection type :	Screwed terminal
Illumination :	No
Surface protection :	Untreated
Recess depth :	0mm
Rated current :	6A
Feedback-signal contact :	No
Material qualifier :	Urea formaldehyde
Type of lighting :	Other
Material :	Plastic
Type of fastening :	Screw mounting
Wiring system :	Single pole switch
Number of rockers/gangs :	0
Switching current for fluorescent lamps :	6AX
Push button switch :	No
Washing machine switch :	No
Surface finish :	Glossy
Degree of protection (IP rating) :	IP20
Width of device :	86mm
Height of device :	86mm
Depth of device :	35mm
Label space/information surface :	No
Function lighting :	Other
Number of module spaces (modular system) :	0
