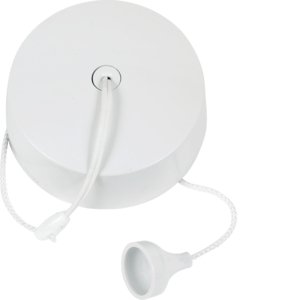

Hager WMCS12 Sollysta White 6A Ceiling Switch: 2 Way

Part: WMCS12
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

6A Ceiling Switch 2 Way.

  • Complies with BS EN 60669-1
  • ‘X‘ rated - no need to de-rate for fluorescent loads
  • Earth terminal in base
  • Switch will operate at up to an angle of 45º
  • Pull cords 1.5m long
  • Capacity of each terminal: 2 x 1.5mm² conductors
  • High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Nominal voltage :240V
Mounting method :Flush mounted
Assembly :Basic unit with full cover plate
Method of operation :Pull cord
Colour :White
Halogen free :Yes
With mounting plate :Yes
Connection type :Screwed terminal
Illumination :No
Surface protection :Untreated
Recess depth :0mm
Rated current :6A
Feedback-signal contact :No
Material qualifier :Urea formaldehyde
Type of lighting :Other
Material :Plastic
Type of fastening :Screw mounting
Wiring system :Two-way switch
Number of rockers/gangs :0
Switching current for fluorescent lamps :6AX
Push button switch :No
Washing machine switch :No
Surface finish :Glossy
Degree of protection (IP rating) :IP20
Width of device :86mm
Height of device :86mm
Depth of device :35mm
Label space/information surface :No
Function lighting :Other
Number of module spaces (modular system) :0
