Hager WMCS3PI
Image is for illustrative purposes only

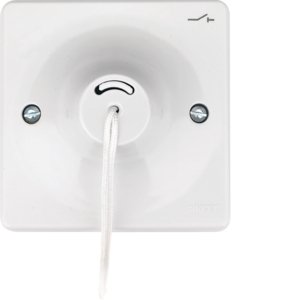

Hager WMCS3PI Sollysta White 3 Pole Ceiling Switch marked 'ISOLATOR'

Part: WMCS3PI
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

10A 3P Ceiling Switch Marked ISOLATOR.

  • Complies with BS EN 60669-2-4.
  • Terminal capacity: 3 x 1.5mm˛
  • Supplied with M3.5 x 30mm long fixing screws and screw covers
  • High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Nominal voltage :240V
Mounting method :Flush mounted
Assembly :Basic unit with full cover plate
Method of operation :Pull cord
Colour :White
Halogen free :Yes
With mounting plate :Yes
Connection type :Screwed terminal
Illumination :No
Surface protection :Untreated
Recess depth :23mm
Rated current :10A
Feedback-signal contact :No
Material qualifier :Urea formaldehyde
Type of lighting :Other
Material :Plastic
Type of fastening :Screw mounting
Wiring system :3-pole switch
Number of rockers/gangs :0
Switching current for fluorescent lamps :10AX
Push button switch :No
Washing machine switch :No
Surface finish :Glossy
Degree of protection (IP rating) :IP20
Width of device :86mm
Height of device :86mm
Depth of device :63mm
Label space/information surface :Yes
Function lighting :Other
Number of module spaces (modular system) :0
