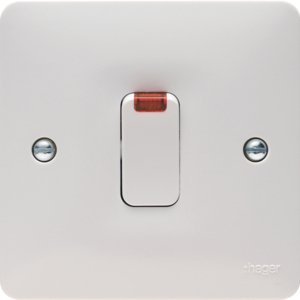

Hager WMDP84N Sollysta 20A Double Pole White Wall Switch with LED Indicator

Part: WMDP84N

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

20A Double Pole Switch with LED Indicator.

Complies with BS EN 60669-1, a.c. only
Single screw fast fix cable clamp, accommodates up to 1.5mm² flexible cord.
All terminals are upward facing with clearly printed terminal markings for ease of installation
Capacity of each terminal 2 x 6.0mm² conductors
Supplied with M3.5 x 30mm long fixing screws and screw covers
High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Nominal voltage :	240V
Mounting method :	Flush mounted
Assembly :	Basic unit with full cover plate
Method of operation :	Rocker
Colour :	White
Halogen free :	Yes
With mounting plate :	No
Connection type :	Screwed terminal
Illumination :	Yes
Surface protection :	Untreated
Recess depth :	21.9mm
Rated current :	20A
Feedback-signal contact :	No
Material qualifier :	Urea formaldehyde
Type of lighting :	LED replaceable
Material :	Plastic
Type of fastening :	Screw mounting
Wiring system :	2-pole switch
Number of rockers/gangs :	1
Switching current for fluorescent lamps :	20AX
Push button switch :	No
Washing machine switch :	No
Surface finish :	Glossy
Degree of protection (IP rating) :	IP20
Width of device :	86mm
Height of device :	86mm
Depth of device :	32.8mm
Label space/information surface :	No
Function lighting :	Illuminated (on)
Number of module spaces (modular system) :	0
