Hager WMGS13L

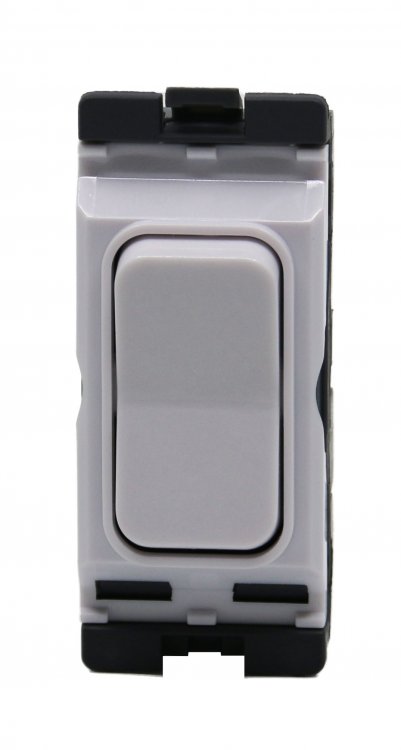

Image is for illustrative purposes only

Hager WMGS13L Sollysta 2 Way & Centre Off Latching Switch White

Part: WMGS13L
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

2 Way & Centre Off Latching Switch.

  • Complies with BS EN 606691-1 switches, BS 5733 fuse carrier
  • Shallowest switch modules which clip in from the front for ease of installation and maintenance.
  • Terminal screw can be accessed with modules clipped into frames.
  • Frames locate to finished wall level.
  • Frames clip together to ease alignment for 6 gang and 8 gang applications.
  • High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Nominal voltage :240V
Mounting method :Flush mounted
Assembly :Basic unit with central cover plate
Method of operation :Rocker
Colour :White
Halogen free :Yes
With mounting plate :No
Connection type :Screwed terminal
Illumination :No
Surface protection :Untreated
Recess depth :13.1mm
Rated current :10A
Feedback-signal contact :No
Material qualifier :Urea formaldehyde
Type of lighting :Other
Material :Plastic
Type of fastening :Engage (snap)
Wiring system :2-pole switch
Number of rockers/gangs :1
Switching current for fluorescent lamps :10AX
Push button switch :No
Washing machine switch :No
Surface finish :Glossy
Degree of protection (IP rating) :IP20
Width of device :25mm
Height of device :59mm
Depth of device :24mm
Label space/information surface :No
Function lighting :Other
Number of module spaces (modular system) :1
