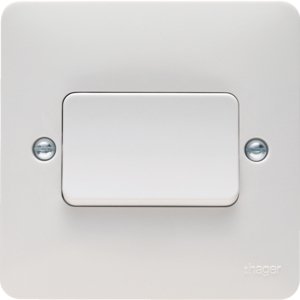

Image is for illustrative purposes only

Hager WMPS12W Sollysta 10AX 1 Gang 2 Way White Wall Switch Wide Rocker

Part: WMPS12W

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

10AX 1 Gang 2 Way Wall Switch Wide Rocker.

Unique patented loop terminal allows neutral looping at the switch
Complies with BS EN 60669-1, a.c only.
‘X‘ rated - No need to derate for fluorescent loads
Clear terminal markings: 1-way L1, 2-way L2
Capacity of each terminal - 2 x 4.0mm² conductors
For multigang switches use of a 25mm mounting box will provide increased wiring space
Supplied with M3.5 x 20mm long fixing screws and screw covers
High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Nominal voltage :	240V
Mounting method :	Flush mounted
Assembly :	Basic unit with full cover plate
Method of operation :	Rocker
Colour :	White
Halogen free :	Yes
With mounting plate :	Yes
Connection type :	Screwed terminal
Illumination :	No
Surface protection :	Untreated
Recess depth :	12mm
Rated current :	10A
Feedback-signal contact :	No
Material qualifier :	Urea formaldehyde
Type of lighting :	Other
Material :	Plastic
Type of fastening :	Screw mounting
Wiring system :	Two-way switch
Number of rockers/gangs :	1
Switching current for fluorescent lamps :	10AX
Push button switch :	No
Washing machine switch :	No
Surface finish :	Glossy
Degree of protection (IP rating) :	IP21
Width of device :	86mm
Height of device :	86mm
Depth of device :	24mm
Label space/information surface :	No
Function lighting :	Other
Number of module spaces (modular system) :	0
