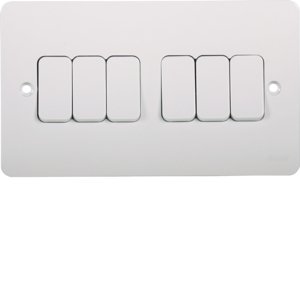

Hager WMPS62 Sollysta 10AX 6 Gang 2 Way White Wall Switch

Part: WMPS62
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

10AX 6 Gang 2 Way Wall Switch.

  • Unique patented loop terminal allows neutral looping at the switch
  • Complies with BS EN 60669-1, a.c only.
  • ‘X‘ rated - No need to derate for fluorescent loads
  • Clear terminal markings: 1-way L1, 2-way L2
  • Capacity of each terminal - 2 x 4.0mm² conductors
  • For multigang switches use of a 25mm mounting box will provide increased wiring space
  • Supplied with M3.5 x 20mm long fixing screws and screw covers
  • High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Nominal voltage :240V
Mounting method :Flush mounted
Assembly :Basic unit with full cover plate
Method of operation :Rocker
Colour :White
Halogen free :Yes
With mounting plate :Yes
Connection type :Screwed terminal
Illumination :No
Surface protection :Untreated
Recess depth :12mm
Rated current :10A
Feedback-signal contact :No
Material qualifier :Urea formaldehyde
Type of lighting :Other
Material :Plastic
Type of fastening :Screw mounting
Wiring system :Two-way switch
Number of rockers/gangs :6
Switching current for fluorescent lamps :10AX
Push button switch :No
Washing machine switch :No
Surface finish :Glossy
Degree of protection (IP rating) :IP21
Width of device :86mm
Height of device :86mm
Depth of device :24mm
Label space/information surface :No
Function lighting :Other
Number of module spaces (modular system) :0
