JCC JC030015 OxfordLED IP20 LED 5ft Single 4000K 30W DALI / 1-10V

Part: JC030015
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Oxford LED as been designed with a hinged diffuser for simple installation and has been designed for surface mounting on solid ceilings, 4000K as standard with up to 50% energy saving against 36W T8 fluorescent. Smooth even light distribution with no visible hotspots available as DALI/1-10V dimmable and emergency.

  • Hinged for simple installation
  • Designed for surface mounting on solid ceilings
  • 50% energy saving against 36W T8 fluorescent
  • Smooth even light distribution
  • no visible hotspots
  • DALI/1-10V Dimmable options

Protection class :I

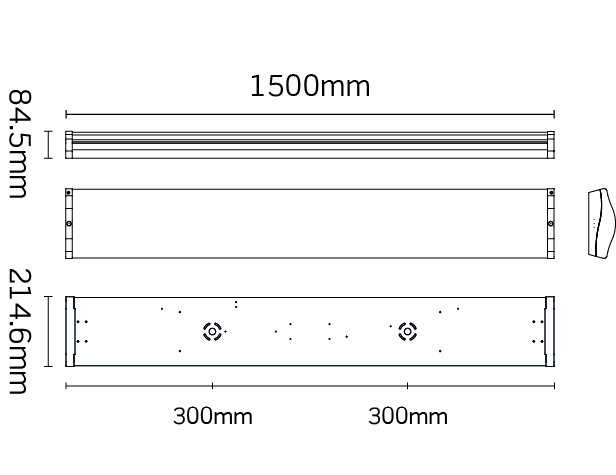

Width :214.6mm
Housing colour :White
Colour rendering index (CRI/Ra) :80-89
Length :1500mm
Height/depth :84.5mm
Material :Steel
Light source type :LED non-replaceable
Nominal voltage :220 to 240V
Degree of protection (IP rating) :IP20
Colour temperature :4000K
Maximum system power :30W
Rated luminous flux acc. IEC 62722-2-1 :3500Lm
Colour of light :White
Power factor :0.9
