JCC JC040030 Toughbay Retrofit 150W 120° 5700K IP65 G2 Emergency

Part: JC040030

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

A versatile highbay, offering 60° 90° and 120° beam angle options, 4000K, 5700K options also as emergency and microwave dimming variants and easy to install 1m flex. Ultra efficient 123 Lumens per circuit Watt, 1-10V dimmable as standard and is suitable for extreme operating temperatures -30° to +60°. Step dimmable available with microwave version and remote control, High CRI of 80 ensuring a true representation of colour throughout its life.

Ultra efficient 123 Lumens per circuit Watt
1-10V dimmable as standard
Suitable for extreme operating temperatures -30° to +60°
Step dimmable available with microwave version and remote control
High CRI of 80 ensuring a true representation of colour throughout its life
Available in 60° 90° and 120° beam angle options

Mounting method :	Pendant
Protection class :	I
Function :	Escape route lighting
Connection type :	Plug-in connection
Housing colour :	Black
Voltage type :	AC
Power supply system :	Peripheral (individual battery)
Control gear :	LED driver constant current
Number of poles :	4

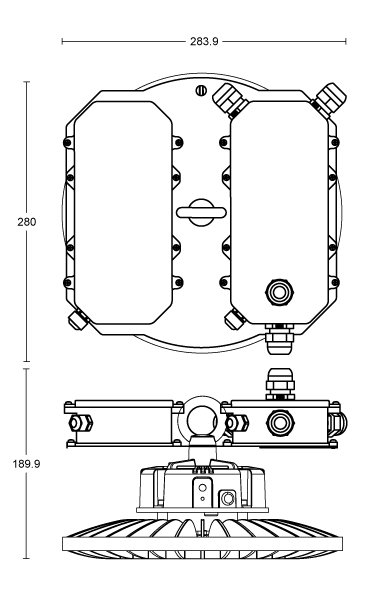

Height/depth :	280mm
Housing material :	Aluminium
Light source type :	LED non-replaceable
Impact resistance (IK rating) :	IK10
Battery chemistry :	NiCd
Nominal voltage :	220 to 240V
Degree of protection (IP rating) :	IP65
Lamp included :	Yes
Monitoring equipment :	Other
Maximum system power :	150W
Type of cabling :	Ending
Rated ambient temperature acc. IEC62722-2-1 :	-30 to 45°C
Light distribution :	Diffuser
Power factor :	0.97
