JCC JC040041 Toughbay 100W 120° 5700K IP65 Non-Dimmable

Part: JC040041

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Our high performance Led Highbay is available with 120° beam angle, emergency and microwave on/off variants and 2m flex for greater flexibility when installing, IP5 with an IK10 rating and is suitable for extreme operating temperatures -30° to +45°.

120º beam angle
Non-dimmable
Comes pre-wired with 2m flex
Emergency options available
M/W on/off options available
IP65 & IK10 rated for harsh environments
-30º to +45º operating temperature

Mounting method :	Pendant
Protection class :	I

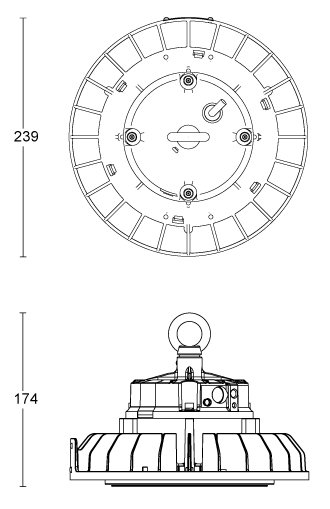

Outer diameter :	239mm
Connection type :	Screwless terminal
Housing colour :	Black
Voltage type :	AC
Control gear :	LED driver constant current
Colour rendering index (CRI/Ra) :	80-89
Number of poles :	3
Height/depth :	171mm
Housing material :	Aluminium
Light source type :	LED non-replaceable
Suitable for emergency lighting :	No
Light sharing :	Symmetric
Impact resistance (IK rating) :	IK10
Nominal voltage :	200 to 240V
Degree of protection (IP rating) :	IP65
Lamp included :	Yes
Control gear included :	Yes
Beam angle :	Extreme wide beam >80°
Maximum system power :	100W
Rated luminous flux acc. IEC 62722-2-1 :	12000Lm
Colour of light :	White
Type of cabling :	Ending
Rated ambient temperature acc. IEC62722-2-1 :	-30 to 45°C
Dimming 0-10 V :	No
Dimming 1-10 V :	No
Dimming DALI :	No
Dimming DMX :	No
Dimming potentiometer (integrated) :	No
Dimming LineSwitch :	No
Dimming manufacturer's proprietary system :	No
Dimming mains voltage modulation :	No
Dimming trailing edge :	No
Dimming leading edge :	No
Dimming programmable :	No
Dimming RF :	No
Dimming Sine Wave Reduction :	No
Dimming Touch and Dim :	No
Dimming Zigbee :	No
Dimming with push-button :	No
Light distribution :	Diffuser
Dimming DSI :	No
Power factor :	0.95
