JCC a Leviton Company JC040062

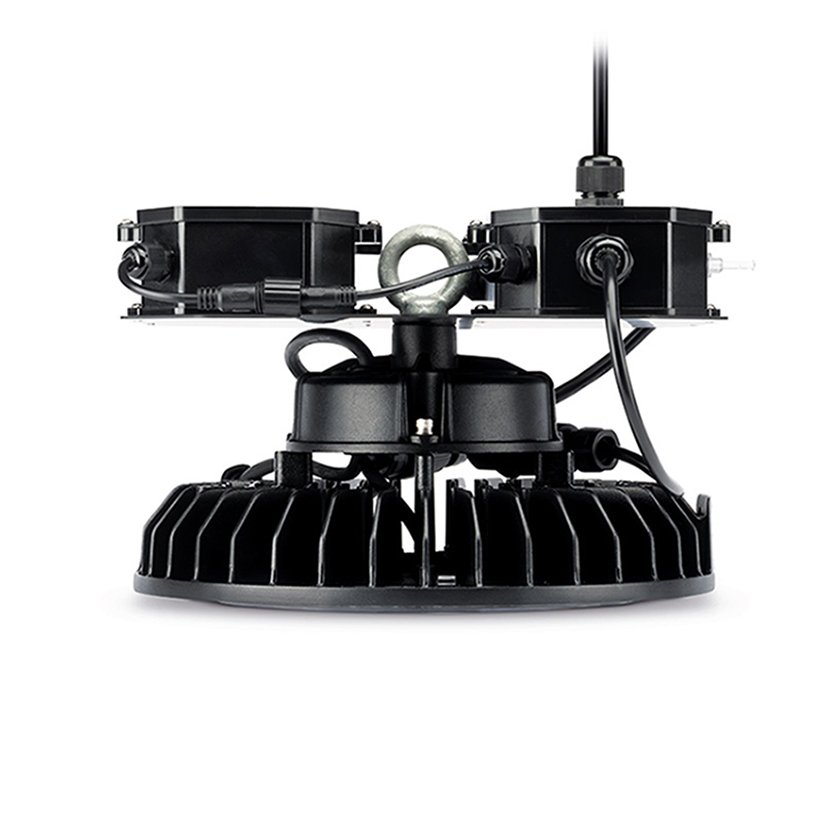

Image is for illustrative purposes only
JCC a Leviton Company JC040062
JCC a Leviton Company JC040062

JCC JC040062 Toughbay 150W 120° 5700K IP65 Non-Dimmable Microwave On/Off Emergency

Part: JC040062
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Our high performance Led Highbay is available with 120° beam angle, emergency and microwave on/off variants and 2m flex for greater flexibility when installing, IP5 with an IK10 rating and is suitable for extreme operating temperatures -30° to +45°.

  • 120º beam angle
  • Non-dimmable
  • Comes pre-wired with 2m flex
  • Emergency options available
  • M/W on/off options available
  • IP65 & IK10 rated for harsh environments
  • -30º to +45º operating temperature

Mounting method :Pendant
Protection class :I
Outer diameter :376mm
Function :Escape route lighting
Connection type :Plug-in connection
Housing colour :Black
Voltage type :AC
Power supply system :Peripheral (individual battery)
Control gear :LED driver constant current
Number of poles :4
Height/depth :208mm
Housing material :Aluminium
Light source type :LED non-replaceable
Impact resistance (IK rating) :IK10
Battery chemistry :NiCd
Nominal voltage :100 to 240V
Degree of protection (IP rating) :IP65
Lamp included :Yes
Monitoring equipment :Other
Maximum system power :150W
Rated luminous flux acc. IEC 62722-2-1 :18000Lm
Type of cabling :Ending
Luminous flux in standby mode :760Lm
Rated ambient temperature acc. IEC62722-2-1 :-30 to 45°C
Light distribution :Diffuser
Nominal operation time :0 to 3 Hour
Power factor :0.95
