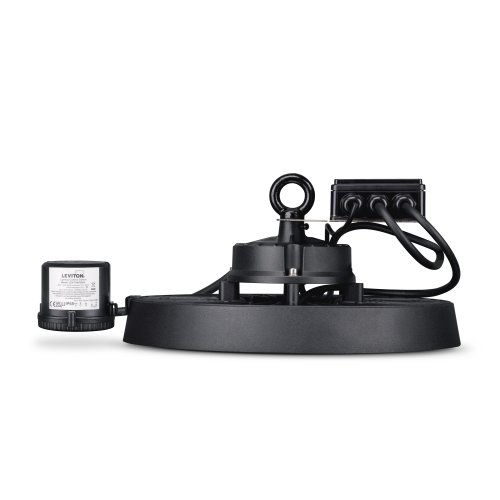

JCC JC040156 Toughbay™200W IP65 5700K 30000lm Microwave Dimmable 90°

Part: JC040156
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

A versatile highbay, offering 60° 90° and 120° beam angle options, 4000K, 5700K options also as emergency and microwave dimming variants and easy to install 1m flex. Ultra efficient 150 Lumens per circuit Watt, 1-10V dimmable as standard and is suitable for extreme operating temperatures -40° to +40°. Step dimmable available with microwave version and remote control, High CRI of 84 ensuring a true representation of colour throughout its life.

  • Ultra efficient, up to 150 Lumens per circuit Watt
  • 1-10V dimmable as standard
  • Suitable for extreme operating temperatures -40° to +40°
  • Step dimmable available with microwave version and remote control
  • High CRI of 84 ensuring a true representation of colour throughout its life
  • Available in 60° 90° and 120° beam angle options

Mounting method :Other
Outer diameter :330mm
Connection type :Other
Housing colour :Black
Voltage type :AC
Control gear :LED driver constant current
Colour rendering index (CRI/Ra) :80-89
Number of poles :3
Height/depth :166.6mm
Housing material :Aluminium
Light source type :LED non-replaceable
Suitable for emergency lighting :No
Light sharing :Symmetric
Impact resistance (IK rating) :IK10
Nominal voltage :220 to 240V
Emergency power supply integrated :No
Degree of protection (IP rating) :IP65
Lamp included :Yes
Control gear included :Yes
Beam angle :Extreme wide beam >80°
Nominal current :650 to 900mA
Maximum system power :200W
Colour of light :White
Type of cabling :Suitable for through wiring
Rated life time L70/B50 at 25 °C :54000 Hour
Colour consistency (McAdam ellipse) :SDCM6
Total harmonic distortion :15
Rated ambient temperature acc. IEC62722-2-1 :-40 to 40°C
Dimming 1-10 V :No
Light distribution :Diffuser
Luminaire efficacy :150
Colour temperature switchable :No
Lumen setting adjustable :Continuously variable
Beam angle adjustable :No
Replaceable control gear :No
Power factor :0.95
