JCC JC080031 Skytile Tp(a) 600x600mm 30W IP20 4000K 3000lm White frame DALI

Part: JC080031
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Tp(a) diffuser, suitable for all applications Low glare, UGR <19 as standard, Ultra efficient 100LpcW. DALI, 1-10V or DSI dimming versions available, IP44 protection against dust and moisture. Comes with non-dimmable flicker free driver. Suspension kit and surface mount box available, suitable for use with JCC emergency remote packs. 600 x600mm.

  • Tp(a) diffuser
  • UGR <19 as standard
  • Ultra efficient 100LpcW
  • Dimming versions available
  • Comes with non-dimmable flicker free driver
  • Suspension kit and surface mount box available

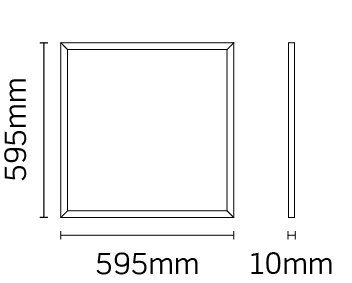

Protection class :II
Width :595mm
Connection type :Screwed terminal
Housing colour :White
Voltage type :AC
Control gear :LED driver constant current
Colour rendering index (CRI/Ra) :80-89
Suitable for suspended mounting :Yes
Number of poles :2
Length :595mm
Height/depth :10mm
Housing material :Aluminium
Light source type :LED non-replaceable
Suitable for emergency lighting :Yes
Light outlet :Direct
Light sharing :Symmetric
Cover material :Plastic opal
Nominal voltage :220 to 240V
Degree of protection (IP rating) :IP20
Lamp included :Yes
Luminaire may be covered with thermally insulating material :No
Suitable for recessed mounting :Yes
Control gear included :Yes
Fit for workplace acc. EN 12464-1 :Yes
Suitable for surface mounting :Yes
Beam angle :Extreme wide beam >80°
Colour temperature :4000 to -K
Maximum system power :30W
Rated luminous flux acc. IEC 62722-2-1 :3000Lm
Type of cabling :Suitable for through wiring
Rated ambient temperature acc. IEC62722-2-1 :25 to -°C
Dimming 0-10 V :No
Dimming 1-10 V :No
Dimming DALI :Yes
Dimming DMX :No
Dimming potentiometer (integrated) :No
Dimming LineSwitch :No
Dimming manufacturer's proprietary system :Yes
Dimming mains voltage modulation :No
Dimming programmable :Yes
Dimming RF :No
Dimming Sine Wave Reduction :No
Dimming Touch and Dim :No
Dimming Zigbee :No
Dimming with push-button :No
Light distribution :Diffuser
Luminaire efficacy :100
Dimming DSI :No
Suitable for ceiling mounting :Yes
Power factor :0.9
