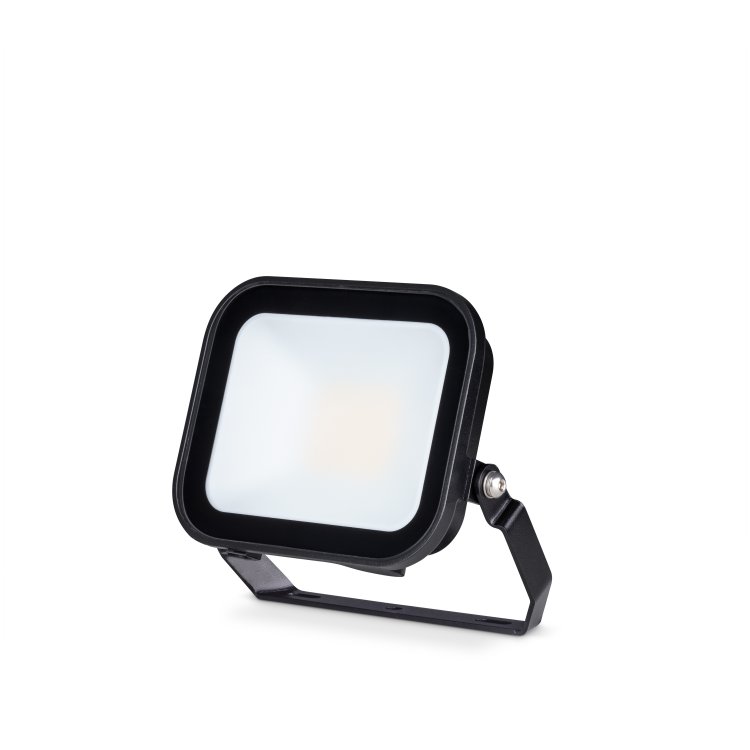

JCC JC091003 Niteflood™ LED Floodlight 20W IP65 4000K Black

Part: JC091003
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

20W LED Up to 112 LpcW,IP65 protection against dust and moisture. 60° angled bracket for ease of installation. The breather gland incorporated is to protect against condensation build up. The opal glass helps reduced glare. The fitting is supplied pre-wired with 800mm flex, Driverless technology. The PIR versions are available and come with with manual override as standard.

  • Up to 112 LcpW
  • IP65 protection against dust and moisture
  • 60° angled bracket for ease of installation
  • Breather gland incorporated to protect against condensation
  • Opal glass for reduced glare
  • Supplied pre-wired with 800mm flex
  • Driverless technology
  • PIR versions, with manual override available

Protection class :I
Width :57.4mm
Connection type :Other
Housing colour :Black
Surface protection :Other
Voltage type :AC
With movement sensor :No
Control gear :Not required
Colour rendering index (CRI/Ra) :80-89
Wall mounting :Yes
With light sensor :No
Number of poles :3
Length :146.6mm
Height/depth :123.2mm
Housing material :Aluminium
Light source type :LED non-replaceable
Light outlet :Direct
Light sharing :Symmetric
Cover material :Glass opal
Degree of protection (IP rating) :IP65
Lamp included :Yes
Control gear included :No
Suitable for surface mounting :Yes
Beam angle :Extreme wide beam >80°
Maximum system power :20W
Colour of light :White
Adjustability :Rotatable
Constant luminous flux control :Yes
Type of cabling :Ending
Colour consistency (McAdam ellipse) :SDCM5
Rated ambient temperature acc. IEC62722-2-1 :-10 to 30°C
Light distribution :Diffuser
Luminaire efficacy :105
Colour temperature switchable :No
Lumen setting adjustable :No
Beam angle adjustable :No
Power factor :0.9
