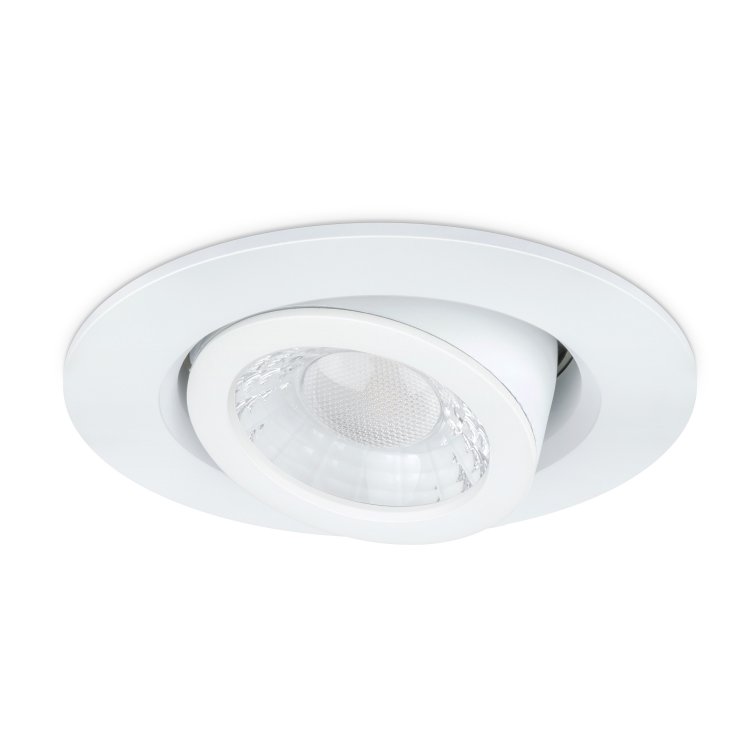

JCC JC1026/WH V50™ Pro Tilt Fire-rated LED Downlight 7.5W IP65 3000/4000K White

Part: JC1026/WH
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

IP65, suitable for bathrooms with a slimline double hinged driver, including colour coded loop in/loop out terminals20° Tilt and 350° rotation, suitable for cut outs Ø86mmLow profile design, for installations in shallow 50mm ceiling voids. Selectable colour temperature of 3000K & 4000K. See jcc.co.uk for latest Fire test reports.

  • Switchable CCT of 3000K or 4000K
  • IP65 suitable for bathrooms (internal use only)
  • Ultra-low profile suitable for shallow 50mm ceiling voids
  • Tested for use in ?re-rated ceilings
  • Strong protected spring clips
  • 20° Tilt and 350° rotation
  • Fast push-fit termination with double hinged remote driver, with colour coded terminals

Protection class :II
Outer diameter :85mm
Connection type :Screwless terminal
Housing colour :White
Voltage type :AC
Control gear :LED driver constant current
Colour rendering index (CRI/Ra) :80-89
Suitable for suspended mounting :No
Number of poles :3
Height/depth :62.7mm
Housing material :Steel
Light source type :LED non-replaceable
Light outlet :Direct
Light sharing :Symmetric
Cover material :Glass transparent
Degree of protection (IP rating) :IP65
Lamp included :Yes
Suitable for recessed mounting :Yes
Control gear included :Yes
Suitable for surface mounting :No
Beam angle :Wide beam 40-80°
Colour temperature :3000 to 4000K
Maximum system power :7.5W
Rated luminous flux acc. IEC 62722-2-1 :650Lm
Colour of light :White
With air slots :Yes
Type of cabling :Through wiring included
Rated life time L70/B50 at 25 °C :51000 Hour
Rated ambient temperature acc. IEC62722-2-1 :0 to 26°C
Dimming mains voltage modulation :Yes
Light distribution :Focal lens
Luminaire efficacy :87
Max. number of luminaires per miniature circuit breaker B16 :20
Lumen setting adjustable :Continuously variable
Beam angle adjustable :No
Replaceable control gear :Yes
Suitable for ceiling mounting :No
Housing surface protection :Other
