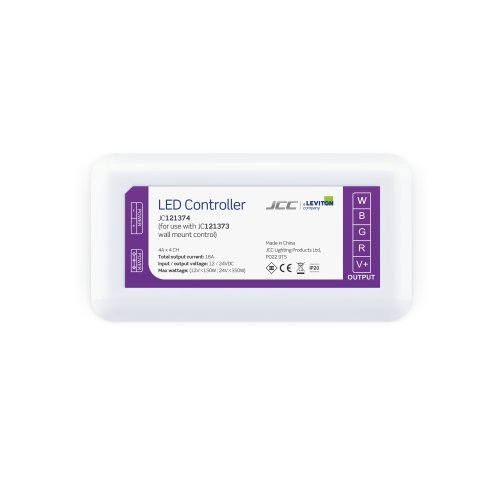

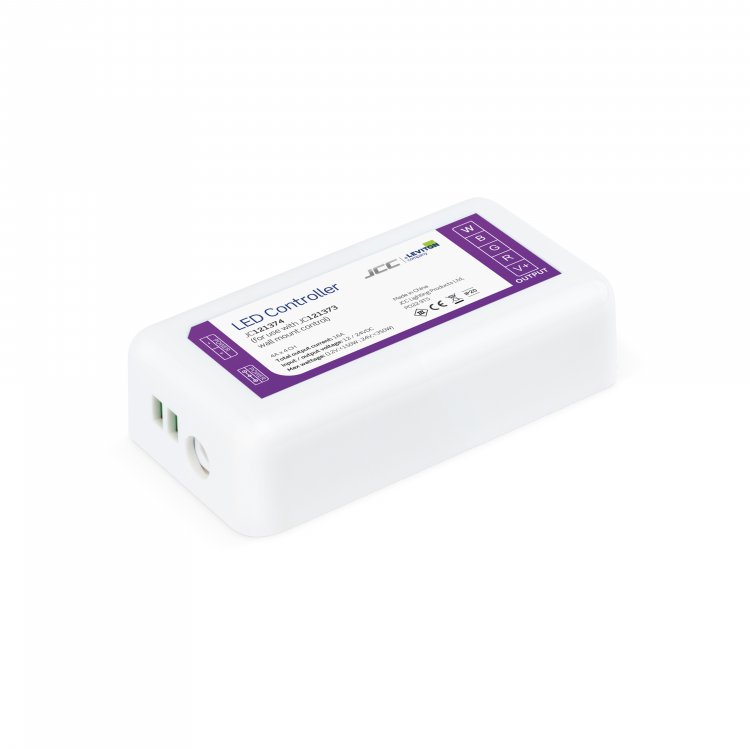

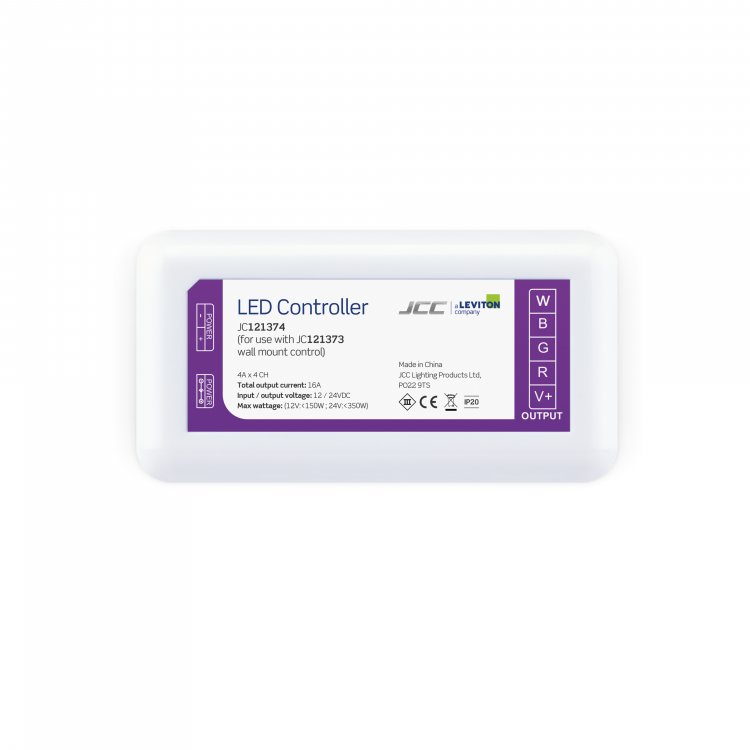

JCC JC121374 RGBW 2.4G RF LED Receiver for use with JC121373 Remote Control, Wall Mounted

Part: JC121374
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

For use with JCC RGBW strip. Simple, fast installation which is easy set up when pairing with controllers. 2.4GHz RF, does not require line of site to operate and is battery operated; no wiring required. Up to 30m transmission distance and can control up to 3 different zones. Each zone can have matching scenes or a separate scene and each zone can run up to 10 controllers. Each zone can control up to 110m 17.6W RGBW or 250m 7.2W RGBW *based on 180W driver-must not exceed the maximum Wattage of the driver, with up to 40 controllers in totalUp to 375m 14.4W RGBW or 750m 7.2W RGBW * based on all 3 zones, 30 controllers -with 180W driverBuilt in memory, saves last set scene when turned offSmooth touch control to adjust colour and brightness10 dynamic pre-set modes, including 3 colour change, 7 colour change, strobe, and single colour fade options.

  • Controllers for use with JCC RGBW strip
  • Simple, fast installation

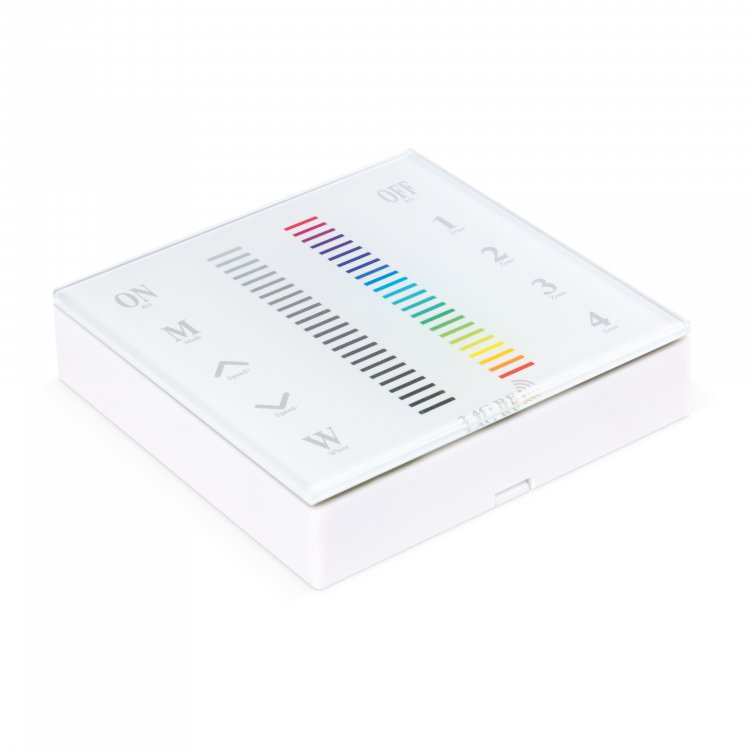

  • Easy set up and pairing with Wall Control
  • 2.4GHz RF, does not require line of site to operate using JC121371 Hand Held Remote Control
  • 350W max output per controller
  • 12VDC or 24VDC, requires constant Voltage non dim driver (to match tape Wattage connected) *JCC RGBW Tape is 24VDC
  • Run up to 10m 17.6W RGBW tape per controller *based on 180W driver-must not exceed the maximum Wattage of the driver
  • Run up to 25m 7.2W RGBW tape per controller *based on 180W driver-must not exceed the maximum Wattage of the driver
  • Connect up to 10 controllers (100m 17.6W RGBW and 250m 7.2W RGBW) per zone *based on 180W driver-must not exceed the maximum Wattage of the driver

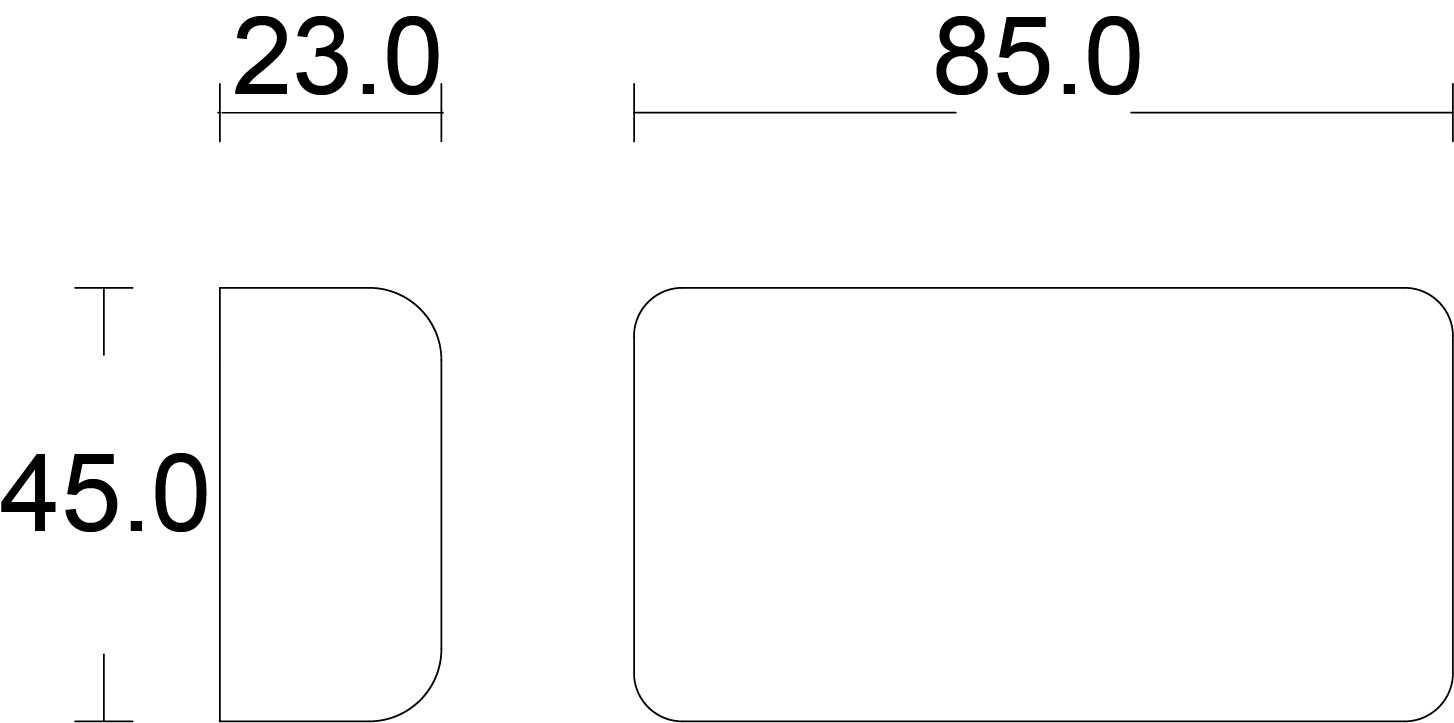

Width :85mm
Model :Main module
Height :45mm
Depth :23mm
