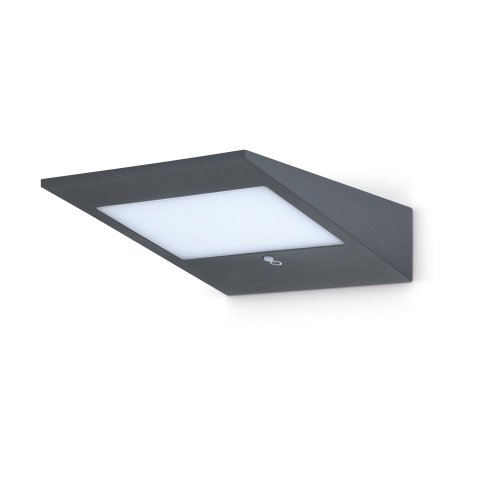

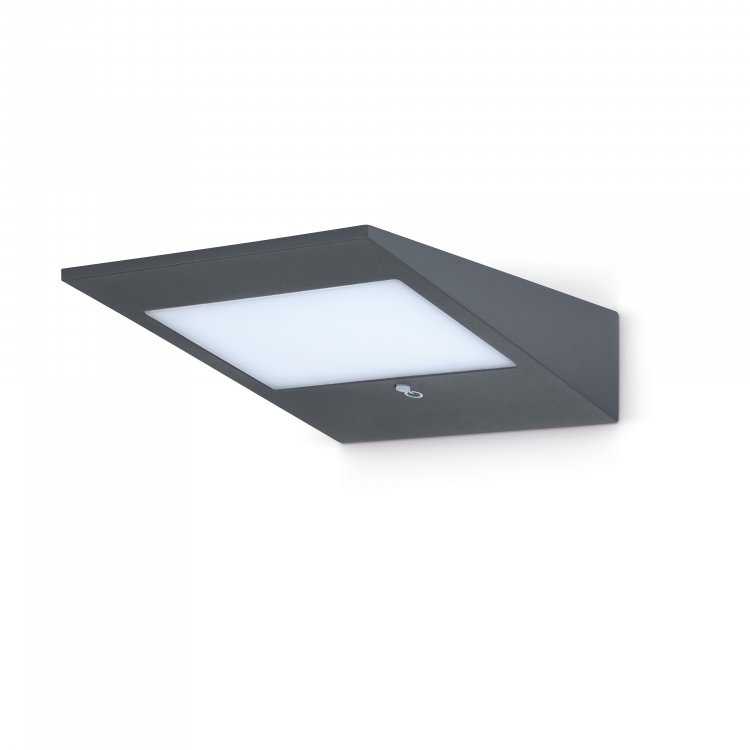

JCC JC17069 Square solar wall light 2W IP54 3000K 195lm Anthracite

Part: JC17069
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Solar powered, zero energy usage. No wiring required Uses Lithium ion batteries, increased charge and discharge cycles, for longer life span. 3000K Colour Temperature to match the Architectural Exterior Range. Step dimmable to 15% light output with no movement -with up to 30 hours run time100% light output when movement detected with up to 3 hours run time at full output. Wall mounted IP54 rating, suitable for exterior use. With matching style Bollard JC17070 available.

  • Solar powered, Zero Energy usage
  • Zero energy usage, no wiring required
  • Uses Lithium ion batteries, increased charge and discharge cycles, for longer life span
  • 3000K Colour Temperature to match the Architectural Exterior Range
  • Step dimmable to 15% light output with no movement
  • With up to 30 hours run time100% light output
  • When movement detected with up to 3 hours run time at full output
  • Wall mounted, with matching style Bollard JC17070 available
  • IP54 rating, suitable for exterior use

Mounting method :Wall bracket
Protection class :III

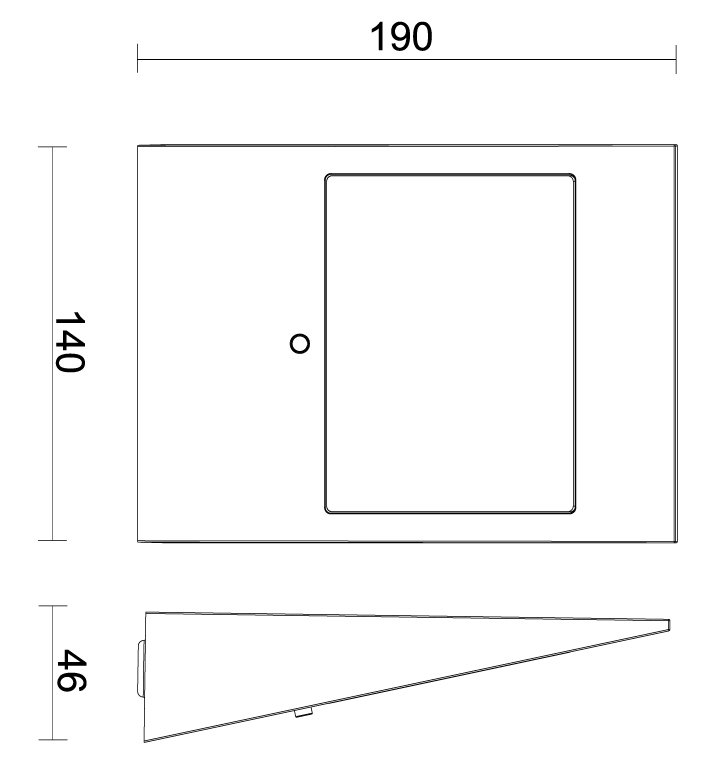

Width :140mm
Housing colour :Anthracite
Surface protection :Powder coated
Voltage type :DC
Colour rendering index (CRI/Ra) :80-89
Length :190mm
Height/depth :46mm
Housing material :Aluminium
Light source type :LED non-replaceable
Cover material :Plastic opal
Degree of protection (IP rating) :IP54
Lamp included :Yes
Control gear included :No
Adjustable optics :No
Nominal current :3.7 to -mA
Maximum system power :2W
Rated luminous flux acc. IEC 62722-2-1 :200Lm
Colour of light :White
Rated life time L70/B50 at 25 °C :36000 Hour
Colour consistency (McAdam ellipse) :SDCM5
Dimming Touch and Dim :No
Light distribution :Diffuser
Luminaire efficacy :100
