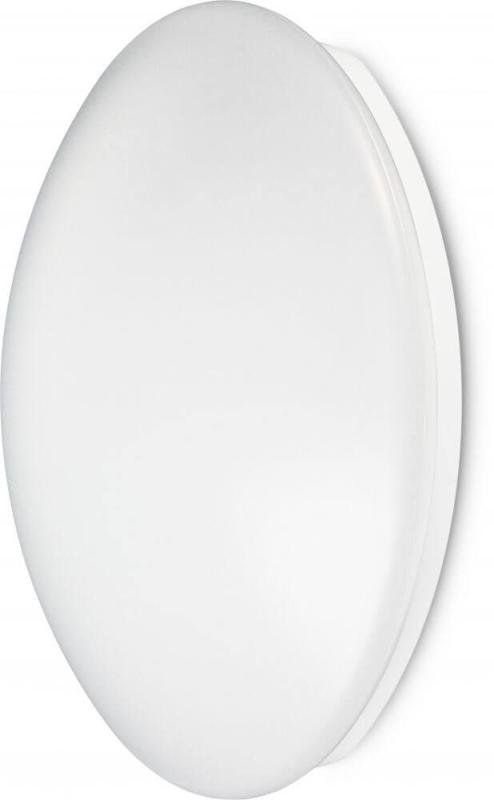

JCC JC24241 RadiaLED Slim Mains IP44 Ø360mm Bulkhead 18W 4000K LED White/Opal

Part: JC24241
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Stylish and contemporary 16W, 28W and 38W CFL replacements. Like for like retrofit, IK09 impact rating. Instant start up, no warm up time, emergency variants available.

  • 16W, 28W and 38W CFL replacements
  • Like for like retrofit
  • IK09 impact rating
  • Instant start up, no warm up time

Protection class :I

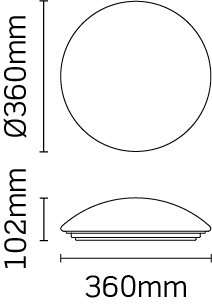

Outer diameter :360mm
Connection type :Screwed terminal
Housing colour :White
Voltage type :AC
With movement sensor :No
Control gear :LED driver constant current
Colour rendering index (CRI/Ra) :80-89
With light sensor :No
Suitable for suspended mounting :No
Number of poles :3
Height/depth :102mm
Housing material :Steel
Suitable for emergency lighting :No
Light outlet :Direct
Light sharing :Symmetric
Cover material :Plastic opal
Nominal voltage :220 to 240V
Degree of protection (IP rating) :IP44
Lamp included :Yes
Luminaire may be covered with thermally insulating material :No
Suitable for recessed mounting :No
Control gear included :Yes
Suitable for surface mounting :Yes
Beam angle :Extreme wide beam >80°
Maximum system power :18W
Rated luminous flux acc. IEC 62722-2-1 :1500Lm
Colour of light :White
With air slots :No
Type of cabling :Suitable for through wiring
Dimming 0-10 V :No
Dimming 1-10 V :No
Dimming DALI :No
Dimming DMX :No
Dimming LineSwitch :No
Dimming manufacturer's proprietary system :No
Dimming mains voltage modulation :No
Dimming trailing edge :No
Dimming leading edge :No
Dimming programmable :No
Dimming RF :No
Dimming Sine Wave Reduction :No
Dimming Touch and Dim :No
Dimming Zigbee :No
Dimming with push-button :No
Light distribution :Diffuser
Luminaire efficacy :83
Dimming DSI :No
Suitable for ceiling mounting :Yes
Power factor :0.9
