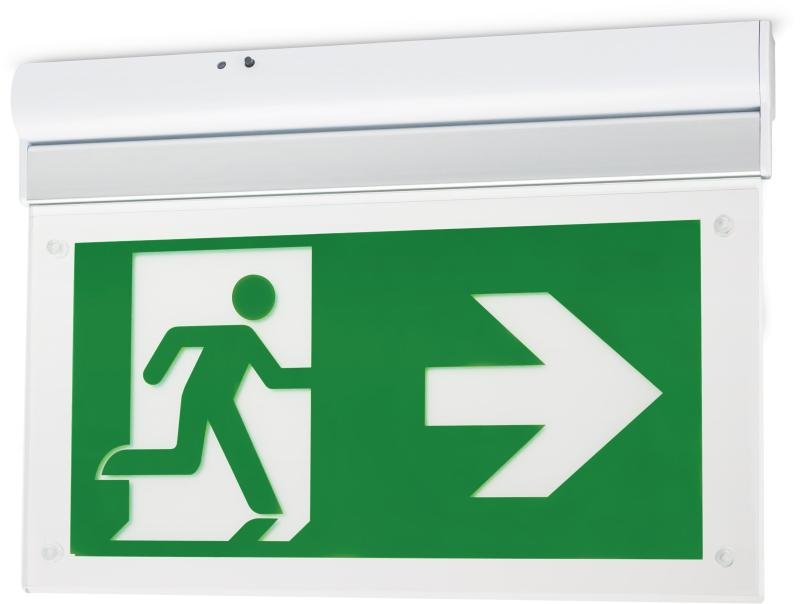

JCC JC50302 Wall/Ceiling Exit Blade Maintained 3M IP20 without legend

Part: JC50302

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Visible from a distance of 24 metres, running man legend kits bought separately. Suitable for use as maintained and non maintained. Hinged frame for wall and ceiling mounting applications (JC50323 only).

Visible from a distance of 24 metres
Running man legend kits bought separately
Suitable for use as maintained and non maintained
Hinged frame for wall and ceiling mounting applications (JC50323 only)

Mounting method :	Wall surface mounted
Protection class :	II
Housing colour :	White
Housing material :	Plastic
Light source type :	LED non-replaceable
Nominal voltage :	220 to 240V
Degree of protection (IP rating) :	IP20
Colour temperature :	700K
Maximum system power :	5.7W
Rated luminous flux acc. IEC 62722-2-1 :	95Lm
Rated ambient temperature acc. IEC62722-2-1 :	0 to 25°C
Nominal operation time :	0 to 3 Hour
Power factor :	0.778
