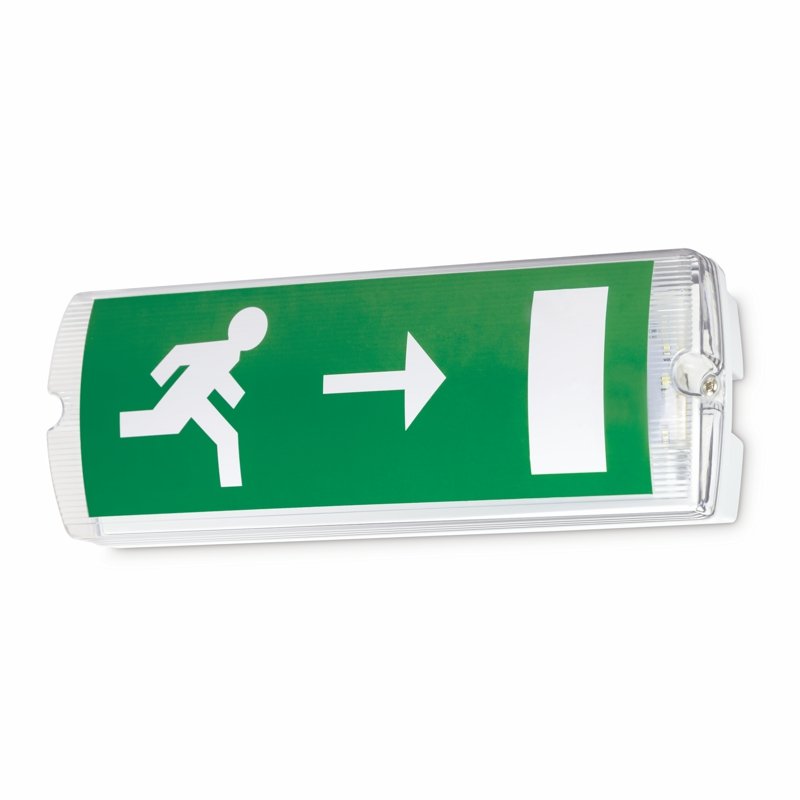

JCC JC50313 7W Maintained self-test exit bulkhead IP65 with 4 legends

Part: JC50313

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Self test, Supplied with up/down/left/right running man legends as standard. Suitable for use as maintained and non maintained, hinged LED gear tray for fast installation with side and rear conduit entry points.

Supplied with up/down/left/right running man legends as standard
Suitable for use as maintained and non maintained
Hinged LED gear tray for fast installation
Side and rear conduit entry points
Self test

Mounting method :	Wall surface mounted
Protection class :	I

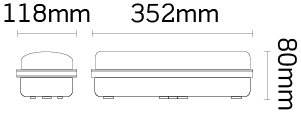

Width :	76mm
Function :	Escape route lighting/signage
Housing colour :	White
Power supply system :	Peripheral (individual battery)
With remote control :	No
Labelling type :	Sticker
Type of indicator :	Single-sided
Length :	350mm
Height/depth :	117mm
Housing material :	Plastic
Light source type :	LED non-replaceable
Battery chemistry :	NiCd
Nominal voltage :	220 to 240V
Degree of protection (IP rating) :	IP65
Lamp included :	Yes
With remote switch connection :	No
Monitoring equipment :	Other
Colour temperature :	6000K
Maximum system power :	7W
Rated luminous flux acc. IEC 62722-2-1 :	400Lm
Pictogram included :	Yes
Rated ambient temperature acc. IEC62722-2-1 :	0 to 25°C
Light distribution :	Reflector
Nominal operation time :	0 to 3 Hour
Replaceable control gear :	No
Power factor :	0.9
