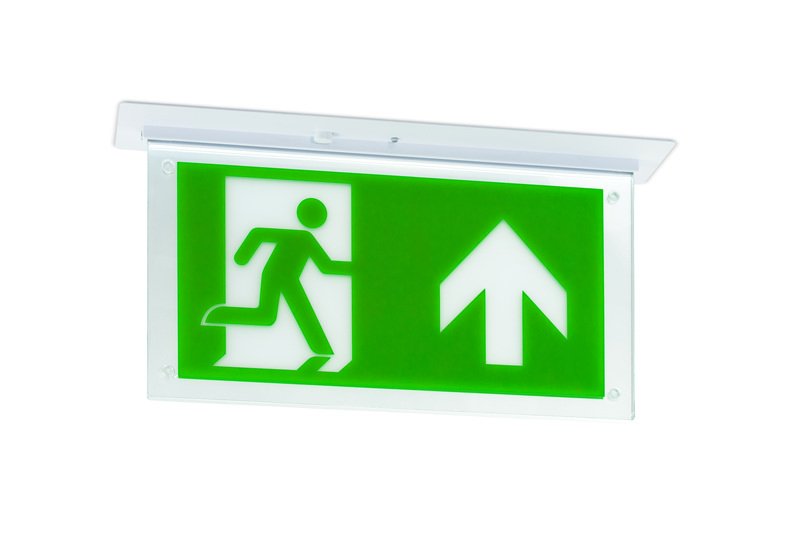

JCC JC50326 Recessed Exit Blade Maintained 3M IP20 without legend

Part: JC50326
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Visible from a distance of 24 metres, running man legend kits bought separately and is suitable for use as maintained and non maintained.

  • Visible from a distance of 24 metres
  • Running man legend kits bought separately
  • Suitable for use as maintained and non maintained
  • Hinged frame for wall and ceiling mounting applications (JC50323 only)

Mounting method :Wall surface mounted
Protection class :II

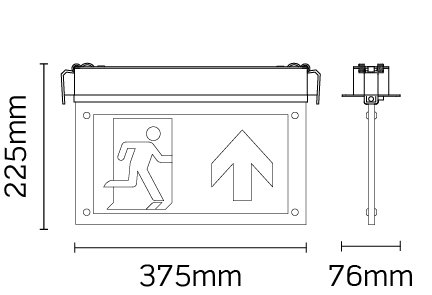

Width :76mm
Housing colour :White
Length :225mm
Height/depth :375mm
Housing material :Plastic
Light source type :LED non-replaceable
Nominal voltage :220 to 240V
Degree of protection (IP rating) :IP20
Colour temperature :6000K
Maximum system power :3W
Rated luminous flux acc. IEC 62722-2-1 :40Lm
Rated ambient temperature acc. IEC62722-2-1 :0 to 25°C
Nominal operation time :0 to 3 Hour
