JCC a Leviton Company JC71933/30X60
Image is for illustrative purposes only

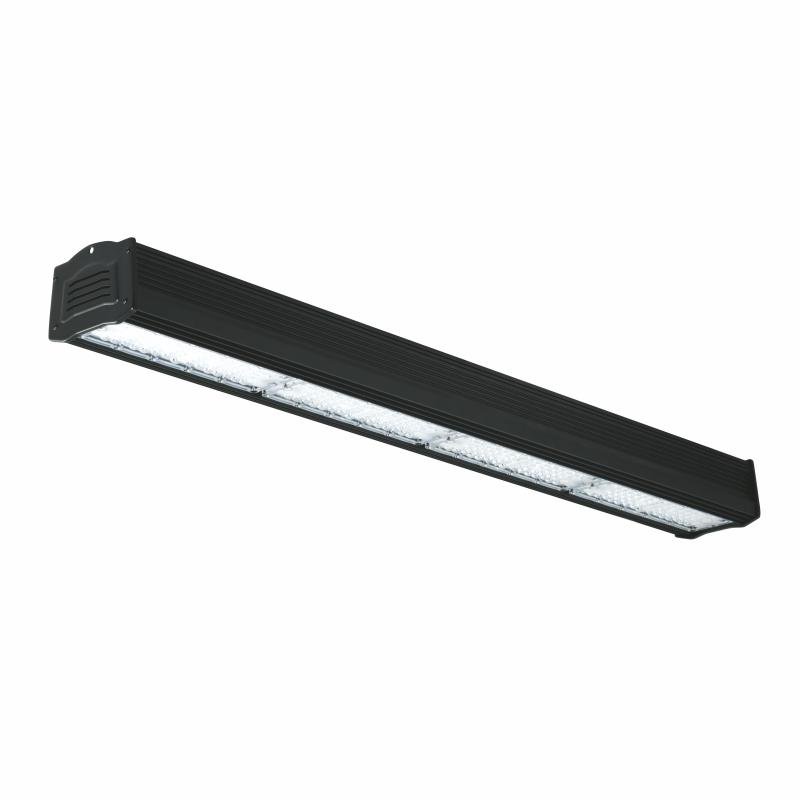

JCC JC71933/30X60 Toughbay Linear 200W 30° x 60° Beam 1-10V Dimmable

Part: JC71933/30X60
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Ultra efficient up to 140 lumens per circuit WattIP65 protection against dust and moistureMultiple lenses available1-10V dimmable as standard30°x 60°, 50° and 80° lens optionsuitable for racking applicationsStep dimming available with remote control.

  • Ultra efficient up to 140 lumens per circuit Watt
  • IP65 protection against dust and moisture
  • Multiple lenses available
  • 1-10V dimmable as standard
  • 30°x 60°, 50° and 80° lens option
  • suitable for racking applications
  • Step dimming available with remote control

Mounting method :Pendant
Protection class :I
Width :125mm
Connection type :Screwless terminal
Housing colour :Black
Voltage type :AC
Control gear :LED driver constant current
Colour rendering index (CRI/Ra) :70-79
Number of poles :3
Length :991mm
Height/depth :89mm
Housing material :Aluminium
Light source type :LED non-replaceable
Suitable for emergency lighting :No
Light sharing :Symmetric
Impact resistance (IK rating) :IK10
Nominal voltage :220 to 240V
Degree of protection (IP rating) :IP65
Lamp included :Yes
Control gear included :Yes
Beam angle :Wide beam 40-80°
Maximum system power :200W
Rated luminous flux acc. IEC 62722-2-1 :28000Lm
Colour of light :White
Type of cabling :Ending
Rated ambient temperature acc. IEC62722-2-1 :-30 to 45°C
Dimming 0-10 V :No
Dimming 1-10 V :Yes
Dimming DALI :No
Dimming DMX :No
Dimming potentiometer (integrated) :No
Dimming LineSwitch :No
Dimming manufacturer's proprietary system :No
Dimming mains voltage modulation :No
Dimming trailing edge :No
Dimming leading edge :No
Dimming programmable :No
Dimming RF :No
Dimming Touch and Dim :No
Dimming Zigbee :No
Dimming with push-button :No
Light distribution :Diffuser
Dimming DSI :No
Power factor :0.95
