JCC a Leviton Company JC72306EMSD
Image is for illustrative purposes only
JCC a Leviton Company JC72306EMSD
JCC a Leviton Company JC72306EMSD

JCC JC72306EMSD Skytile Surface Linear IP20 1500mm LED 60W 4000K Microwave Step dimmable

Part: JC72306EMSD
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Shallow design with secure anti-tamper fixings, outperforms 2x58W T8 fluorescent. Ideal for lower mounting heights, easy to clean wipeable surface. Can be suspended with 1.5m wire suspension kit. Emergency, DALI, 1-10V, microwave options.

  • Outperforms 2x58W T8 fluorescent
  • Secure anti-tamper design
  • Shallow design
  • ideal for lower mounting heights
  • Easy to clean wipeable surface
  • 1.5m wire suspension kit available

Mounting method :Ceiling surface mounting
Protection class :I

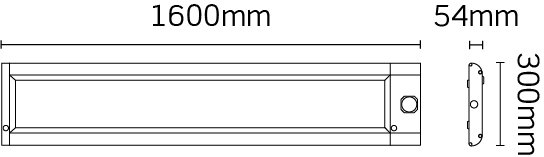

Width :300mm
Housing colour :White
Length :1600mm
Height/depth :54mm
Housing material :Aluminium
Light source type :LED non-replaceable
Nominal voltage :220 to 240V
Degree of protection (IP rating) :IP20
Colour temperature :4000K
Maximum system power :60W
Rated luminous flux acc. IEC 62722-2-1 :5100Lm
Rated ambient temperature acc. IEC62722-2-1 :0 to 25°C
Nominal operation time :0 to 3 Hour
Power factor :0.98

Make an enquiry

...
