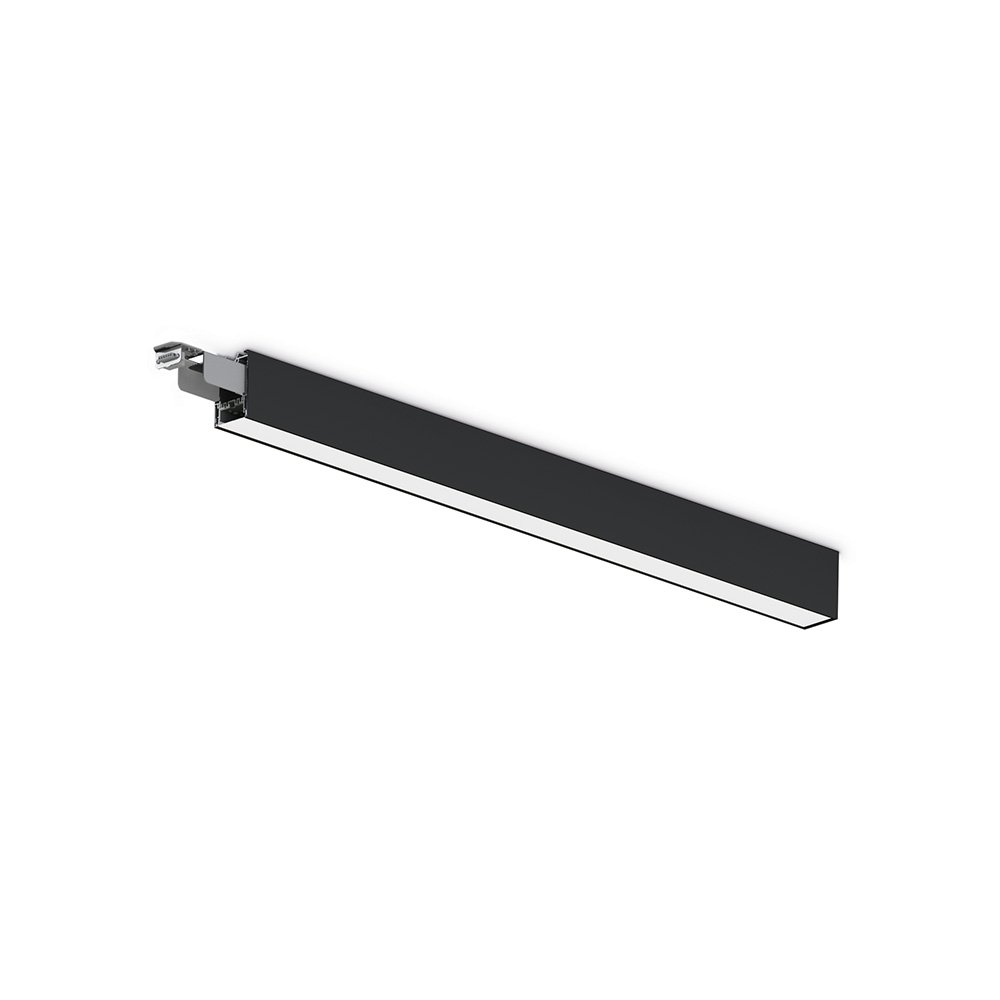

JCC JC773S/5/4K/ND/BLK Line of Light Direct 1500mm start 35W 4000K Black

Part: JC773S/5/4K/ND/BLK
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Linkable plug and play lighting solution Integrated emergency versions available surface mounted, suspended installations options Available in black or white .

  • Linkable plug and play lighting solution
  • Integrated emergency versions available
  • surface mounted, suspended installations options
  • Available in black or white

Protection class :I

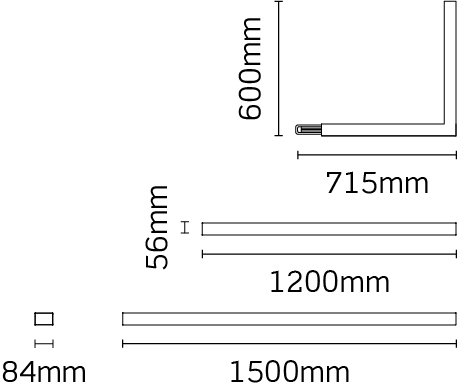

Width :56mm
Connection type :Other
Housing colour :Black
Control gear :LED driver constant current
Colour rendering index (CRI/Ra) :80-89
Length :1505mm
Height/depth :84mm
Material :Aluminium
Light source type :LED non-replaceable
Electrical connection with connector system :No
Suitable for emergency lighting :No
Nominal voltage :100 to 240V
Degree of protection (IP rating) :IP20
Control gear included :Yes
Colour temperature :4000K
Maximum system power :35W
Rated luminous flux acc. IEC 62722-2-1 :3500Lm
Colour of light :White
Dimming 0-10 V :No
Dimming 1-10 V :No
Dimming DALI :No
Dimming DMX :No
Dimming potentiometer (integrated) :No
Dimming LineSwitch :No
Dimming manufacturer's proprietary system :No
Dimming mains voltage modulation :No
Dimming trailing edge :No
Dimming leading edge :No
Dimming programmable :No
Dimming RF :No
Dimming Sine Wave Reduction :No
Dimming Touch and Dim :No
Dimming Zigbee :No
Dimming with push-button :No
No dimming function :Yes
Light distribution :Diffuser
Dimming DSI :No
Power factor :0.9
