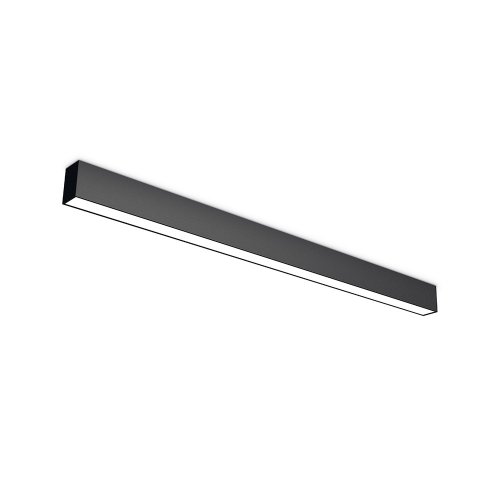

JCC JC773S/5/4K/NDEM/BLK Line of Light Direct 1500mm start 35W 4000K EM Black

Part: JC773S/5/4K/NDEM/BLK
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Linkable plug and play lighting solutionIntegrated emergency versions availableSuspended and ceiling mounted installations.

  • Linkable plug and play lighting solution
  • Integrated emergency versions available
  • Suspended and ceiling mounted installations

Mounting method :Ceiling surface mounting
Protection class :I
Width :56mm
Function :Escape route lighting
Connection type :Unpreassembled connection cable
Housing colour :Black
Voltage type :AC/DC
Power supply system :Peripheral (individual battery)
Length :1505mm
Height/depth :84mm
Light source type :LED non-replaceable
Cover material :Plastic opal
Nominal voltage :100 to 240V
Degree of protection (IP rating) :IP20
Lamp included :Yes
With remote switch connection :No
Monitoring equipment :None
Colour temperature :4000K
Maximum system power :35W
Rated luminous flux acc. IEC 62722-2-1 :3500Lm
Pictogram included :No
Rated ambient temperature acc. IEC62722-2-1 :0 to 40°C
Nominal operation time :0 to 3 Hour
Power factor :0.9
