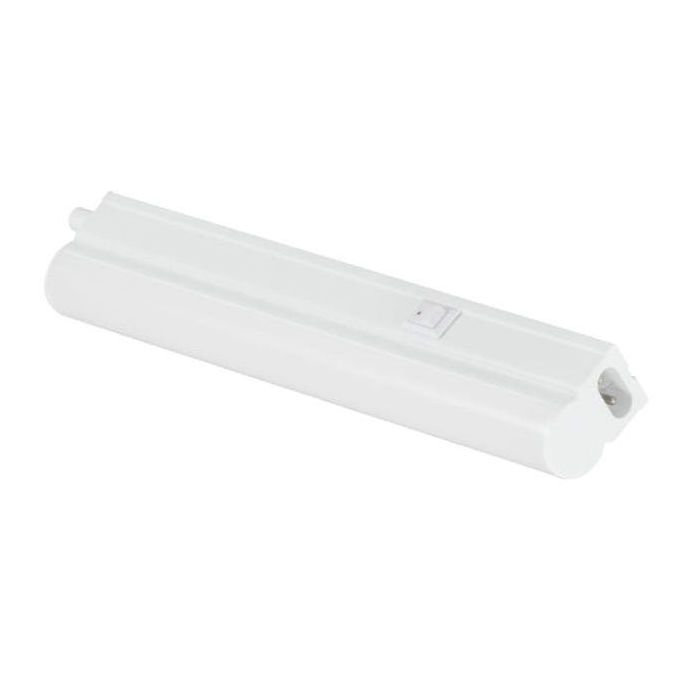

JCC JC83301 Undercabinet LED Batten IP20 3W 220mm 4000K White PC c/w 1m lead.

Part: JC83301
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Slim line profile LED Battens which are a direct replacements for T5 fluorescent, 3000K or 4000K options with individual on/off switch on each luminaire. Four different lengths of 220mm, 520mm, 820mm or 1120mm to suit various applications. Can be connected end-to-end for a continuous run or linked using leads which are available in three lengths, 250mm, 500mm or 1000m also supplied as standard with 1000mm mains input cable.

  • End-to-end connection
  • Three link leads available in 250mm, 500mm and 1000mm lengths
  • Slim line profile
  • On/off switch on each luminaire
  • Supplied as standard with 1000mm mains cable

Protection class :II
Width :36mm
Connection type :Screwless terminal
Housing colour :White
Voltage type :AC
With movement sensor :No
Control gear :LED driver constant current
Colour rendering index (CRI/Ra) :80-89
With switch :Yes
Number of poles :2
Length :220mm
Height/depth :23mm
Light source type :LED non-replaceable
Electrical connection with connector system :Yes
Nominal voltage :220 to 240V
Degree of protection (IP rating) :IP20
Lamp included :Yes
Control gear included :Yes
Colour temperature :4000K
Maximum system power :3W
Rated luminous flux acc. IEC 62722-2-1 :320Lm
Colour of light :White
Type of cabling :Through wiring included
Dimming 0-10 V :No
Dimming 1-10 V :No
Dimming DALI :No
Dimming DMX :No
Dimming potentiometer (integrated) :No
Dimming LineSwitch :No
Dimming manufacturer's proprietary system :No
Dimming DSI :No
Power factor :0.5
